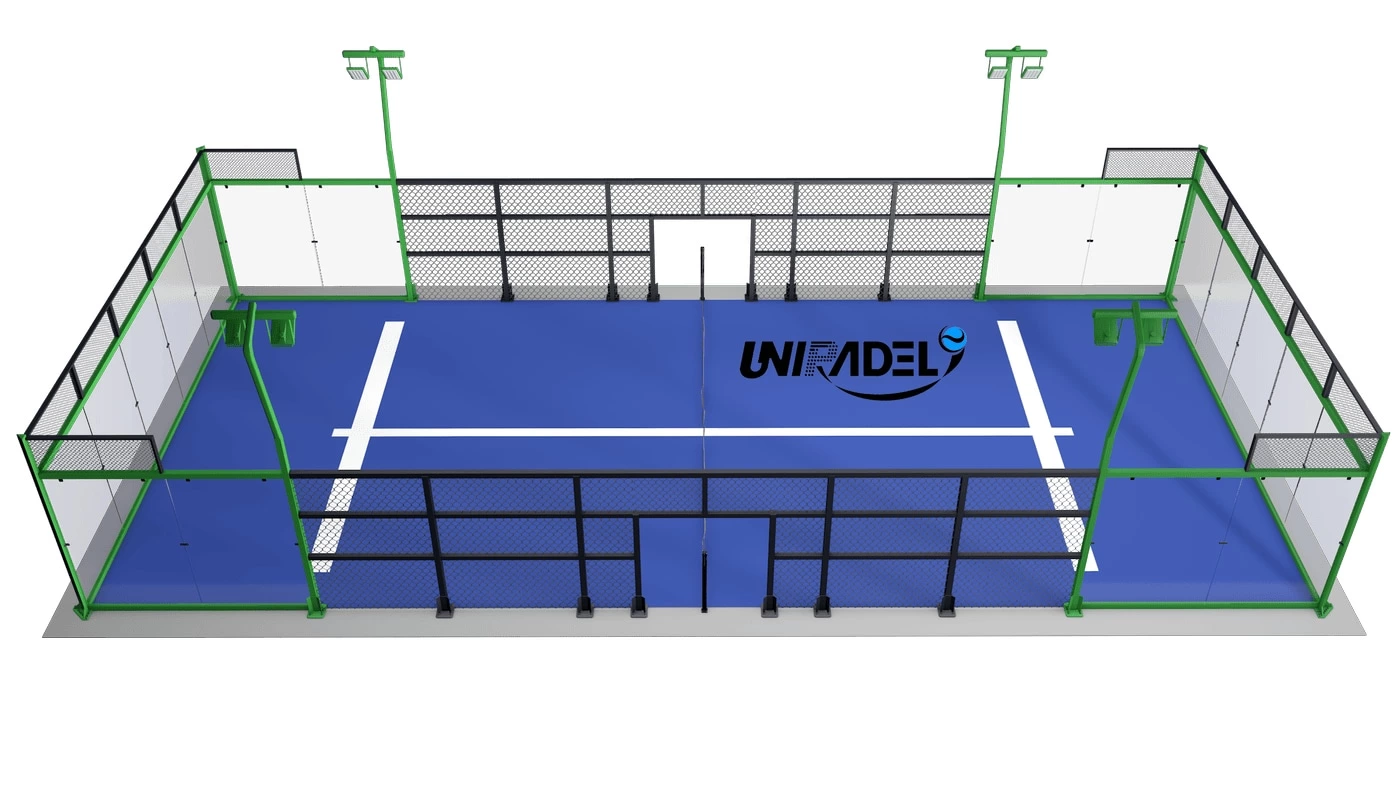

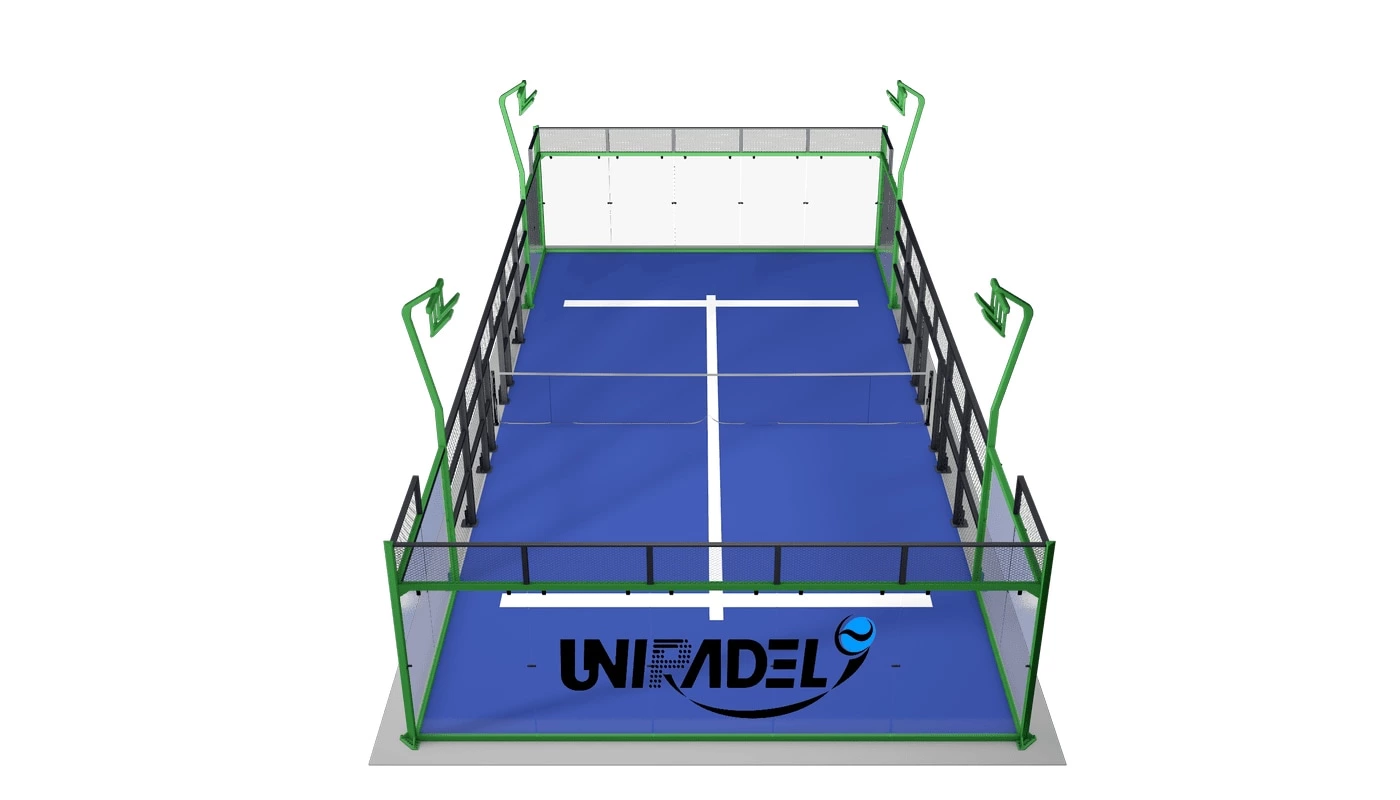

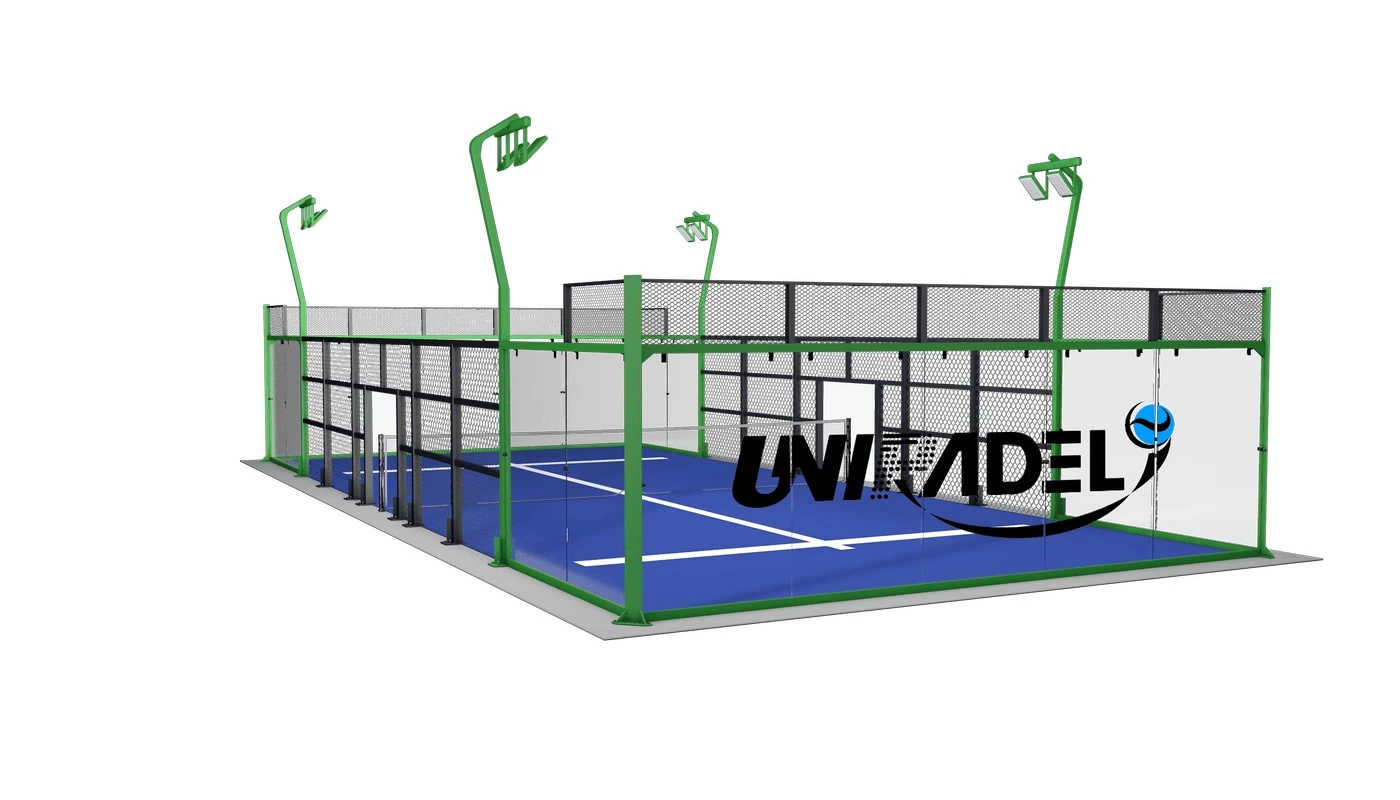

UNIPADEL - Panoramic Padel Court With Z-shaped

Introduction

The infrastructure and facilities of the Z-shaped panoramic padel court and the C-shaped panoramic padel court are basically the same. The difference lies in the shape and height of the lampposts. It is also one of the best-selling padel courts, suitable for indoor and outdoor use, and the color of the lawn and columns can be customized.

Colors Structure

UNIPADEL - Panoramic Padel Court With Z-shaped
UNIPADEL - Panoramic Padel Court With Z-shaped
UNIPADEL - Panoramic Padel Court With Z-shaped
UNIPADEL - Panoramic Padel Court With Z-shaped
UNIPADEL - Panoramic Padel Court With Z-shaped
UNIPADEL - Panoramic Padel Court With Z-shaped

Technical Details

Size

Width: 10 meters | Length: 20 meters

Tempered Glass

18PC of 12 mm Tempered Glass

Galvanized Structure

All the raw material from our structure is Hot Galvanized. Steel Grade: Q235B

All the parts that are welded and perfurated go through an extra Zinc Treatment

Hot Galvanized raw material with extra ZINC Treatment after all process

Mesh

Hot Galvanized raw material with extra ZINC treatment after all the process Electro welded mesh with 50 x 50 x 4mm

Artificial Grass

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Infill: Sand

Colours: Blue, Red and Green

Lighting System

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Grass Types Used

blue
Blue
green
Green
red
Red
