Introduction
The design of the classic padel tennis court follows the standards of the International Paddle Tennis Federation (FIP) and is 10 meters wide and 20 meters long. This court structure not only provides good visibility, but also ensures the safety of the game and the rebound effect of the ball. The design of the columns is its important feature. Straight arm lamp posts are usually used, and C-shaped lamp posts can also be customized according to needs. The design of the classic padel tennis court has been verified for many years and aims to provide the best sports experience for athletes and spectators.
In order to adapt to the needs of night games, classic padel tennis courts are usually installed with traditional upright lamp posts. These lamp posts are generally arranged at the four corners or both sides of the court to ensure uniform lighting effects, so that the court can be used normally at night. The lighting layout has been carefully designed to meet the vision needs of athletes and enhance the overall atmosphere of the game. Whether it is day or night, this design ensures that athletes can get the best performance and experience in the game.
Gallery

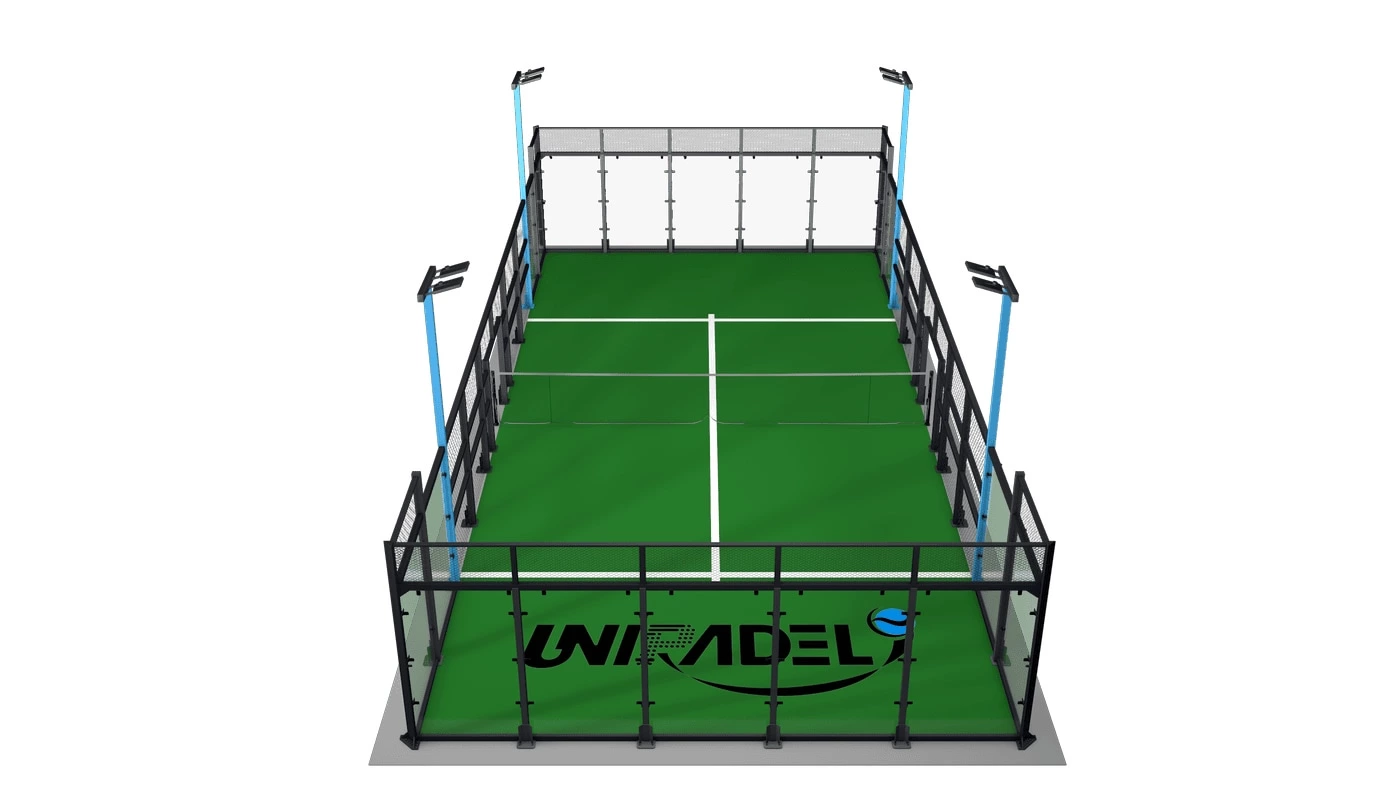

Classic Padel Court

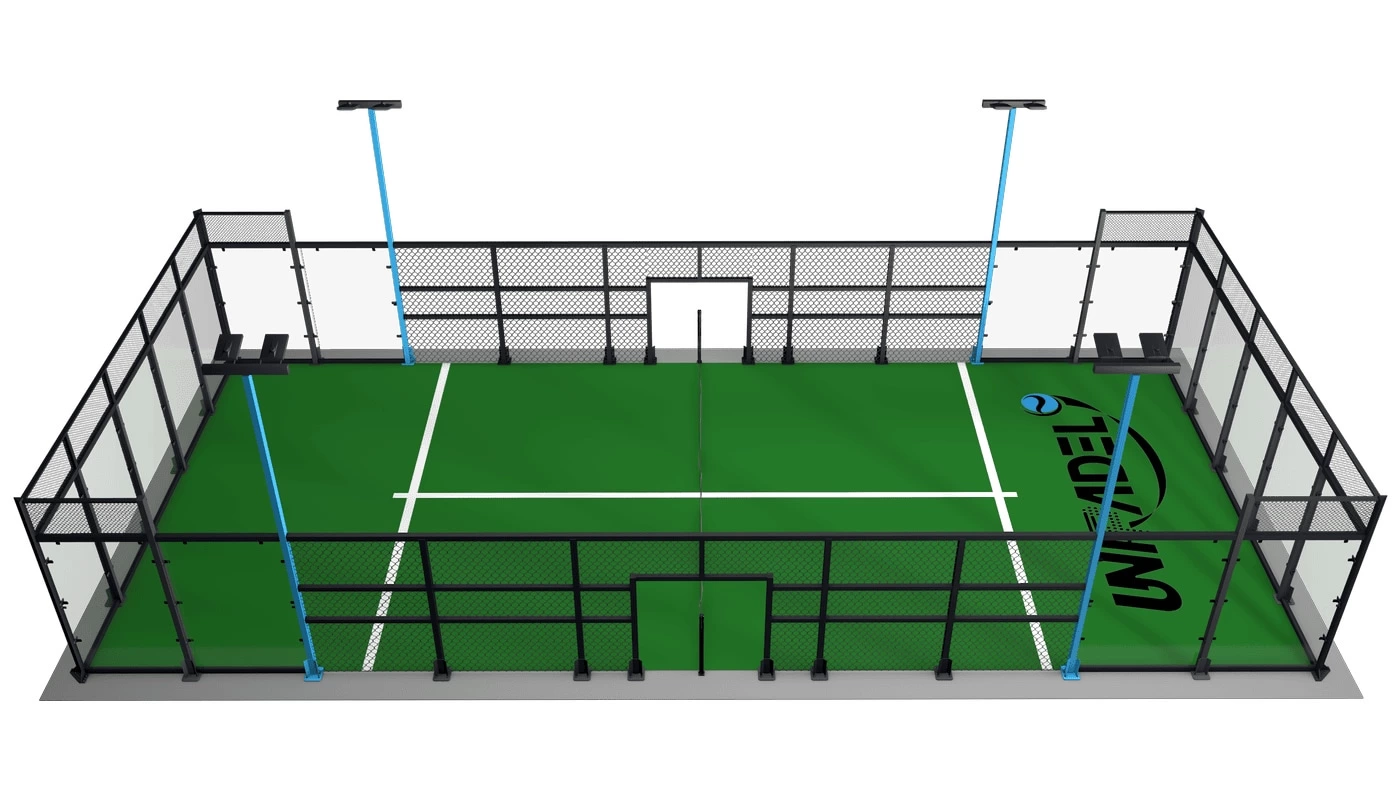

Classic Padel Court
Classic Padel Court
8-10 Year Warranty
The Safest Padel Courts
Excellent Materials
Structure Technical Details
Padel Court Dimensions
The standard classic padel court size is 10 meters wide and 20 meters long, with a rectangular layout. This compact size provides an efficient and tight space for competition, suitable for doubles competitions
Galvanized Steel Mesh
Material: Hot Galvanized Steel Grade: Q235B
Frame column size:50mm*30mm*2mm(c)
Mesh hole size: 50mm*50mm*4mm
Mesh size : 1x2m/Piece
Surface treatment:Powder coating
Galvanized Steel Post
Material: Hot Galvanized Steel Grade: Q235B
Column&Gate Post:80mm*60mm*3mm Length 3m
Steel Mesh :50mm*30mm*2mm
Crossbar: 150*50*3mm
Light Arm : 50*50*3mm,H3M"
Padel Court Tempered Glass
Thickness: 12mm
Light Transmission(TL %): 87%
Outdoor Reflection (RLe%):7.9%
Glass size: 1990mm*3000mm */pieces
Package: Wood Carton
Finish: Hole drilled"
Padel Turf
Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model
Pile height: 12mm
Yarn Dtex: 9500 Dtex
Backing: Latex PP+Net+Sbrwith white marking line together
Warranty: 8 years for outdoors
Color:Blue,Light Blue、Green、Purple 、Pink or customized
Certificate:CE, SGS, ROHS, REACH"

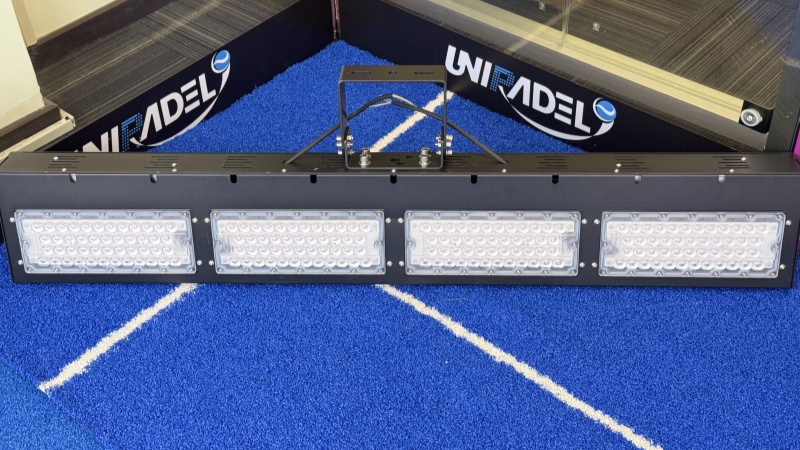

Padel Court Lighting
Working voltage: AC220V
Power: 200W
Luminous efficiency: ≥120LM/W
Power factor: ≥0.95
Lamp bead color temperature: 5700K
Color rendering index: Ra70
Light source type: SMD 3030
Protection class: IP65
Working Temperature: – 25ºC ~ +45ºC
Padel Courts Design
UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.
The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.
In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.
Padel Turf Color
Blue
Green
