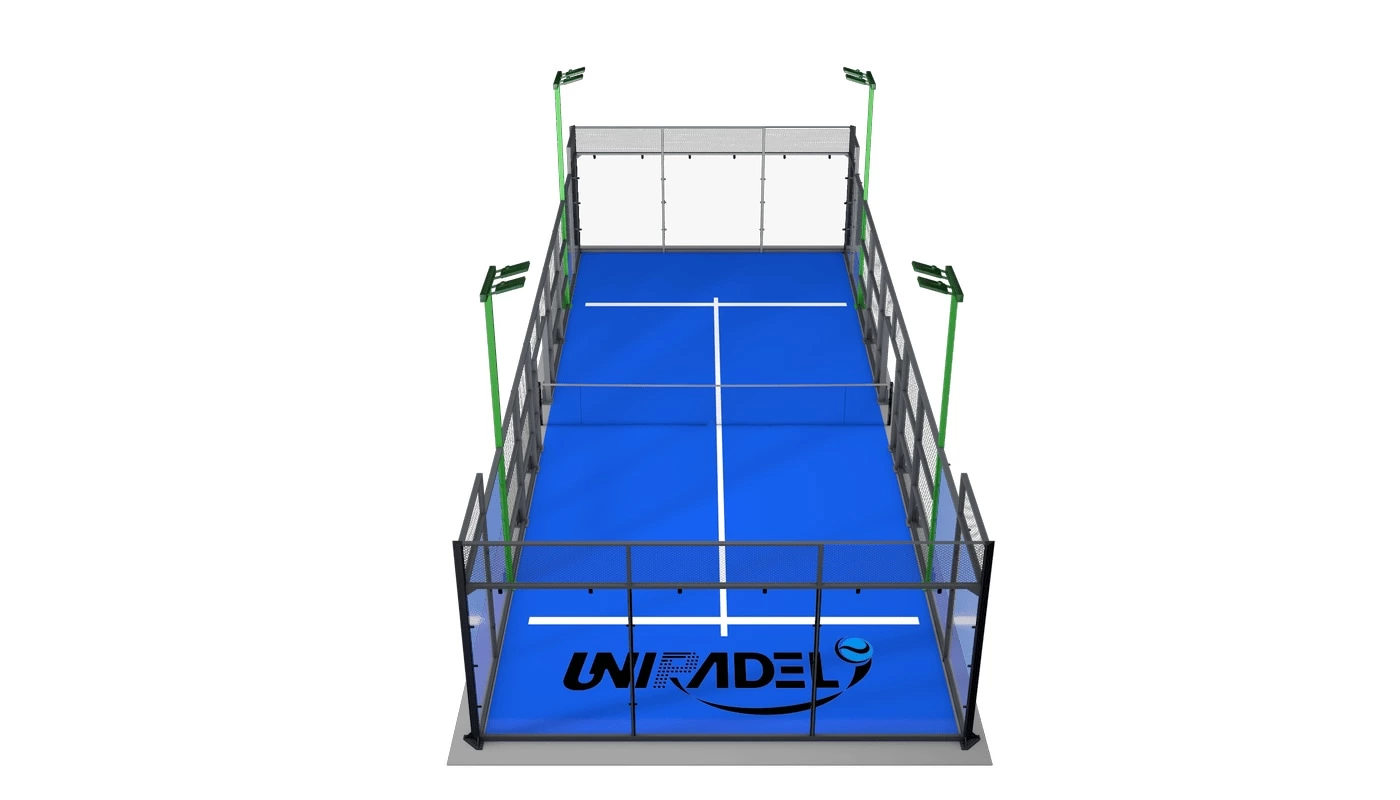

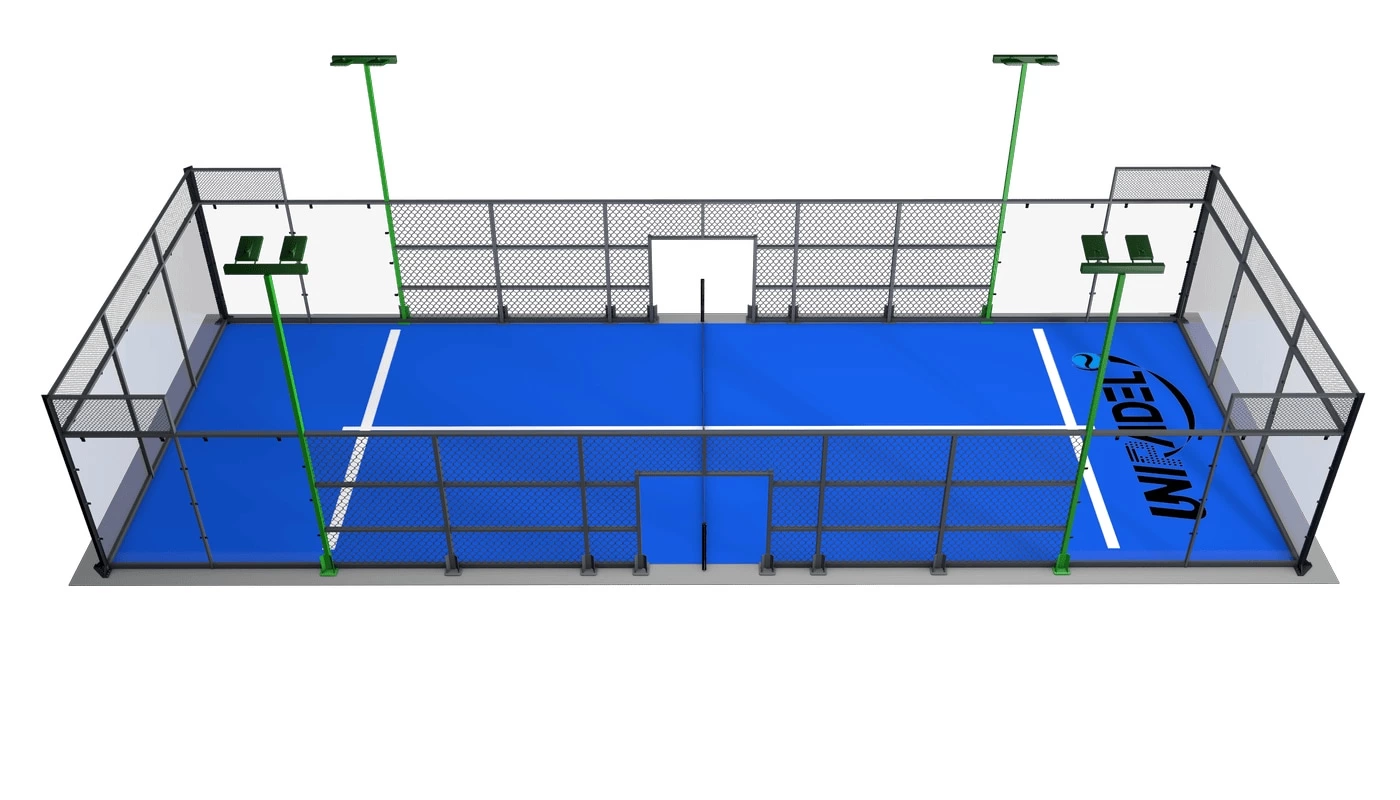

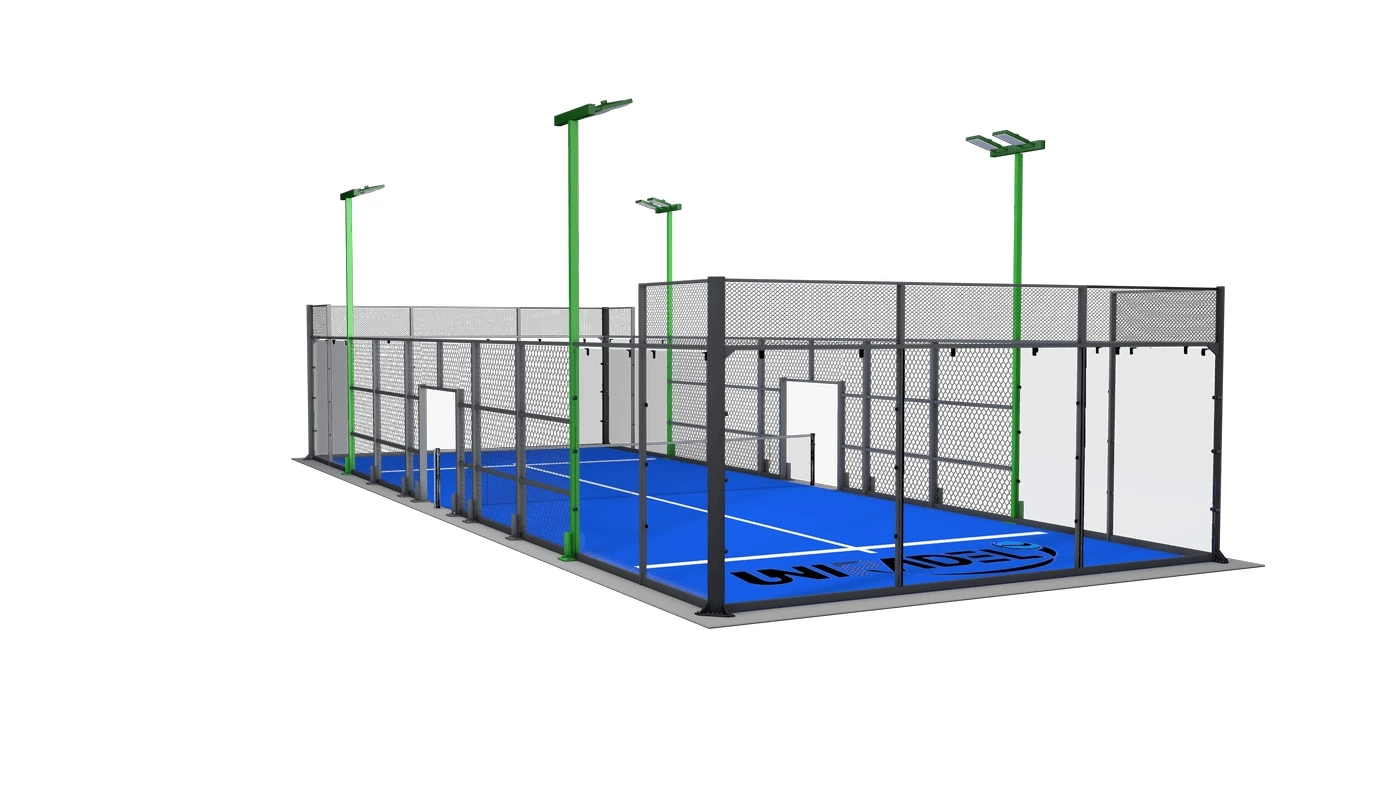

Single Padel Court(Classic)

Introduction

The advantages of the Single Padel Court (Classic Court) lie in its compact design and traditional structure. This series of courts uses high-quality materials and modern design concepts to provide an excellent sports experience. The design of glass and metal mesh fences not only enhances the safety of the court, but also provides a good view for spectators and coaches, ensuring that every moment of the game can be clearly captured. The overall compact structure allows the court to flexibly adapt to different venue environments, suitable for individuals, families and small organizations, and perfectly integrated into a variety of outdoor venues.

In addition, the Single Padel Court (Classic Court) also has superior functionality and practicality. The high-quality ground material selection of the court, combined with the modern lighting system, allows athletes to maintain their best performance under different lighting conditions. Artificial turf not only provides good cushioning and anti-slip properties, effectively reducing the risk of injury to athletes, but also its easy maintenance characteristics also keep the court in good condition during use, meeting the requirements of outdoor use with a high safety factor. Simple installation and post-maintenance make this series of courts an ideal choice for individuals and small organizations, helping every exciting game.

Structure Technical Details

Single Padel Court(Classic)

Padel Court Dimensions

The standard size of a classic single padel court is 6 meters wide and 20 meters long. This size provides a moderate field space for singles games. The 6-meter width ensures that players can be flexible when running back and forth on the sidelines, while the 20-meter length provides enough space for longitudinal running, allowing players to have more room to maneuver during the game.

Galvanized Steel Mesh

Material: Hot Galvanized Steel Grade: Q235B

Frame column size:50mm*30mm*2mm(c)

Mesh hole size: 50mm*50mm*4mm

Mesh size : 1x2m/Piece

Surface treatment:Powder coating'

Galvanized Steel Post

Material: Hot Galvanized Steel Grade: Q235B

Corner post: 80mm*80mm*3mm, height: 3M

Column: 80mm*60mm*3mm, height: 3M

Cross bar: 80mm*80mm*3mm, length: 4m/5m

Light Arm size50*50*2.5mm

Center post: 80mm*80mm*3mm Height: 980mm

Padel Court Tempered Glass

Thickness: 12mm

Light Transmission(TL %): 87%

Outdoor Reflection (RLe%):7.9%

Glass size: 1990mm*3000mm */pieces

Package: Wood Carton

Finish: Hole drilled"

Padel Turf

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Backing: Latex PP+Net+Sbrwith white marking line together

Warranty: 8 years for outdoors

Color:Blue,Light Blue、Green、Purple 、Pink or customized

Certificate:CE, SGS, ROHS, REACH"

Padel Court Lighting

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Padel Courts Design

UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.

The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.

In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.

Single Padel Court(Classic)
Single Padel Court(Classic)
Single Padel Court(Classic)
Single Padel Court(Classic)
Single Padel Court(Classic)
Single Padel Court(Classic)

Padel Turf Color

blue
Blue
green
Green
red
Red
