Introduction
The main advantages of the Classic Padel Court with Roof are its all-weather capability and traditional aesthetics, providing a premium experience for athletes and spectators. Its roof design ensures all-weather use, and its wall structure and efficient lighting system enhance the safety and comfort of the game. Whether used for community facilities or professional arenas, this court design can meet a variety of needs and provide excellent results. The style of the Classic Padel Court with Roof meets the customer's competition or training needs. The roof design protects the court from the weather, prolongs its use time, and keeps the court in good condition under various weather conditions. Whether it is sunny or rainy, the stadium can provide a stable playing environment to ensure the continuity and comfort of the game.
Gallery

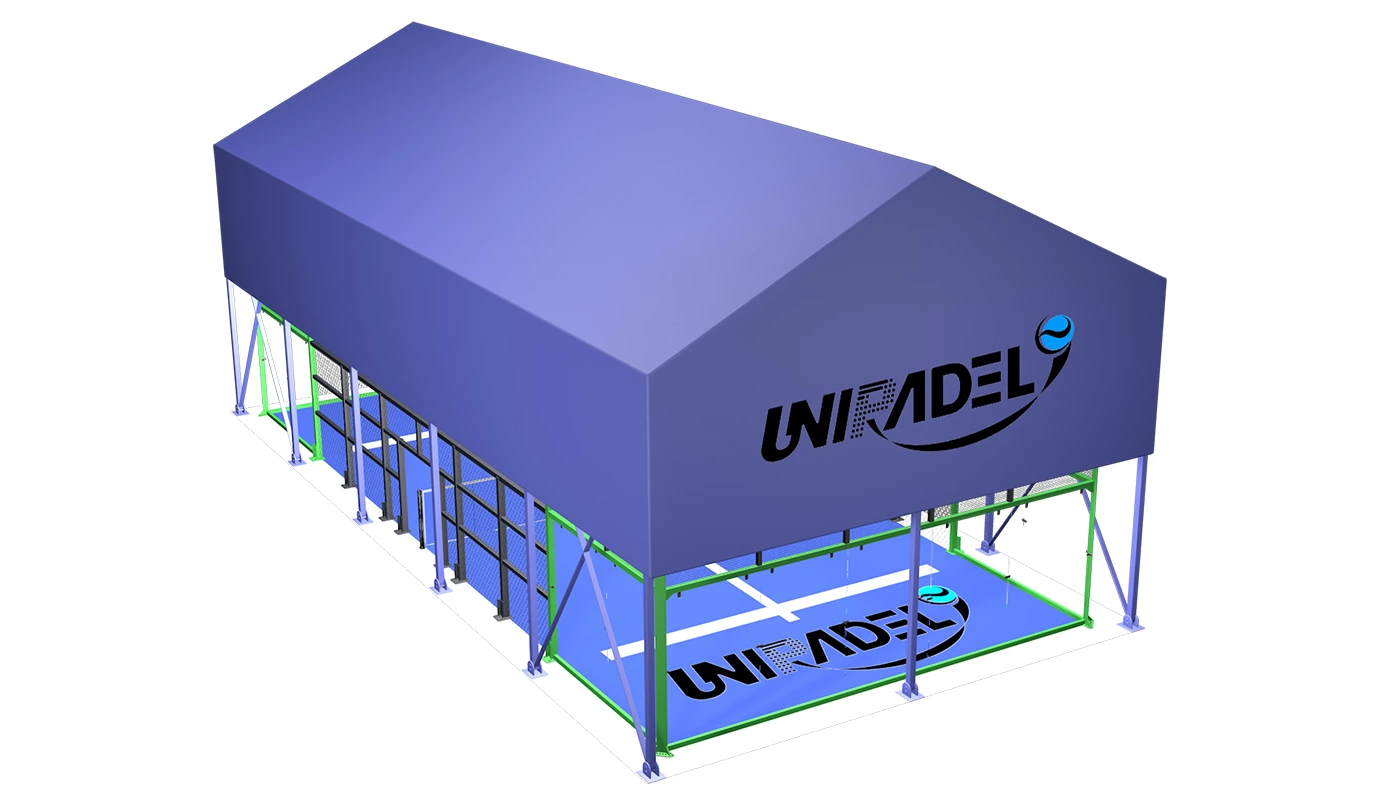

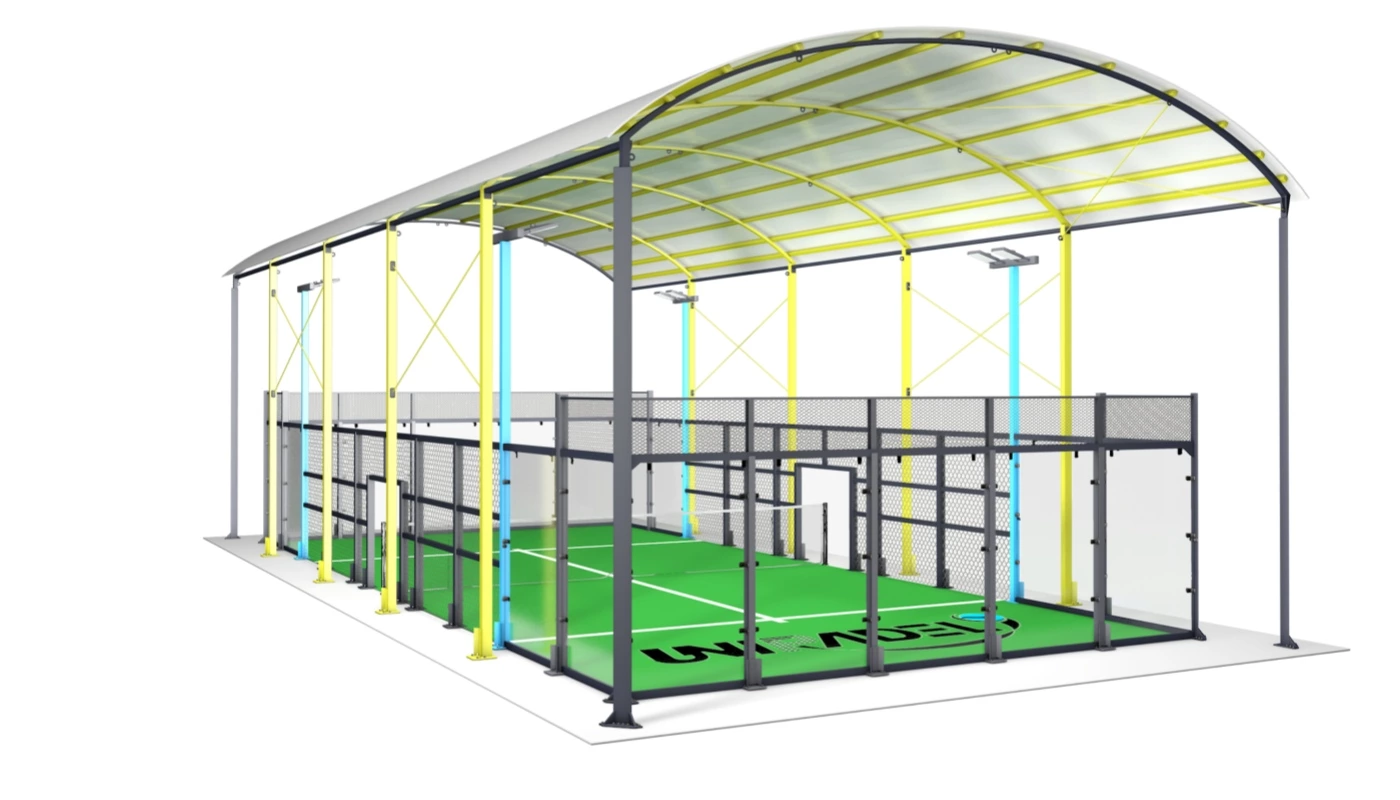

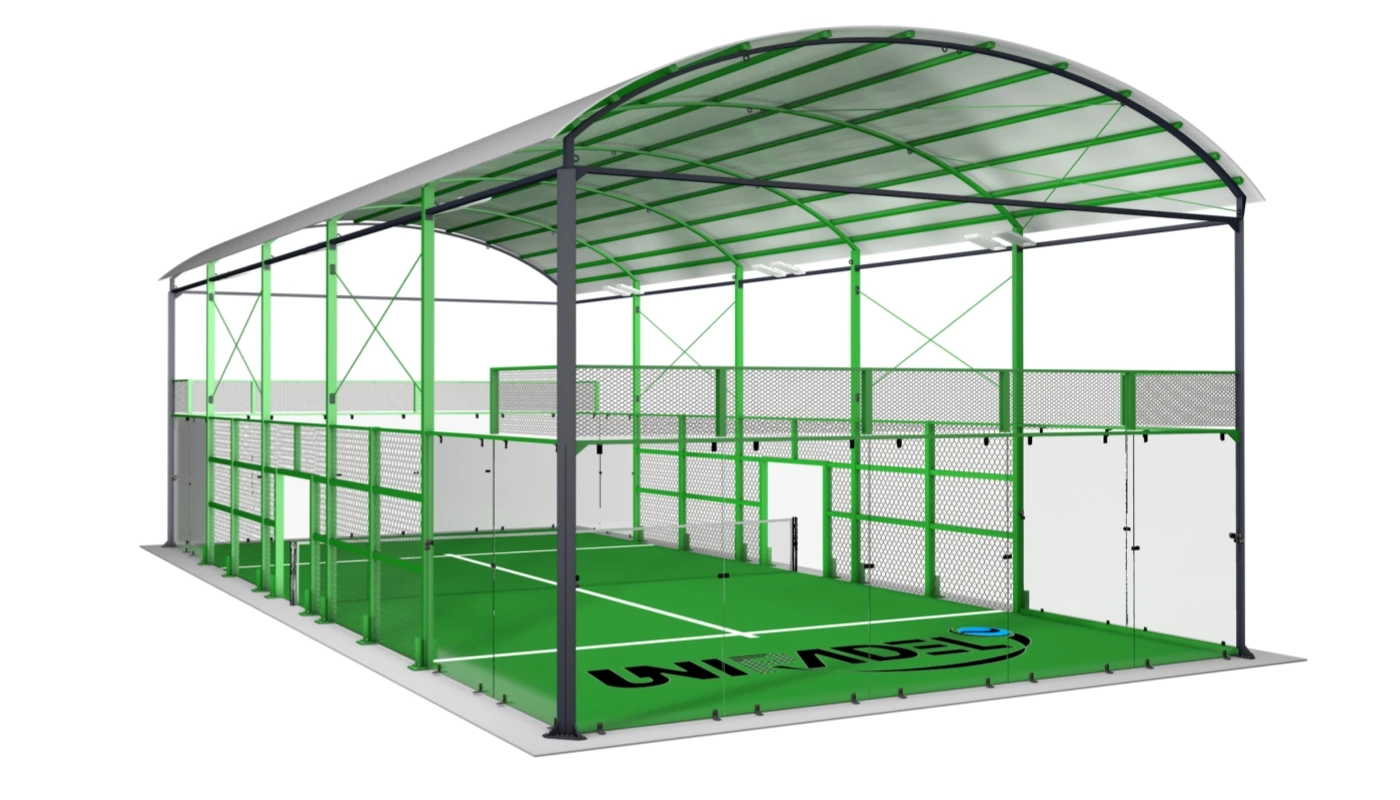

UNIPADEL - Classic Padel Court with Roof

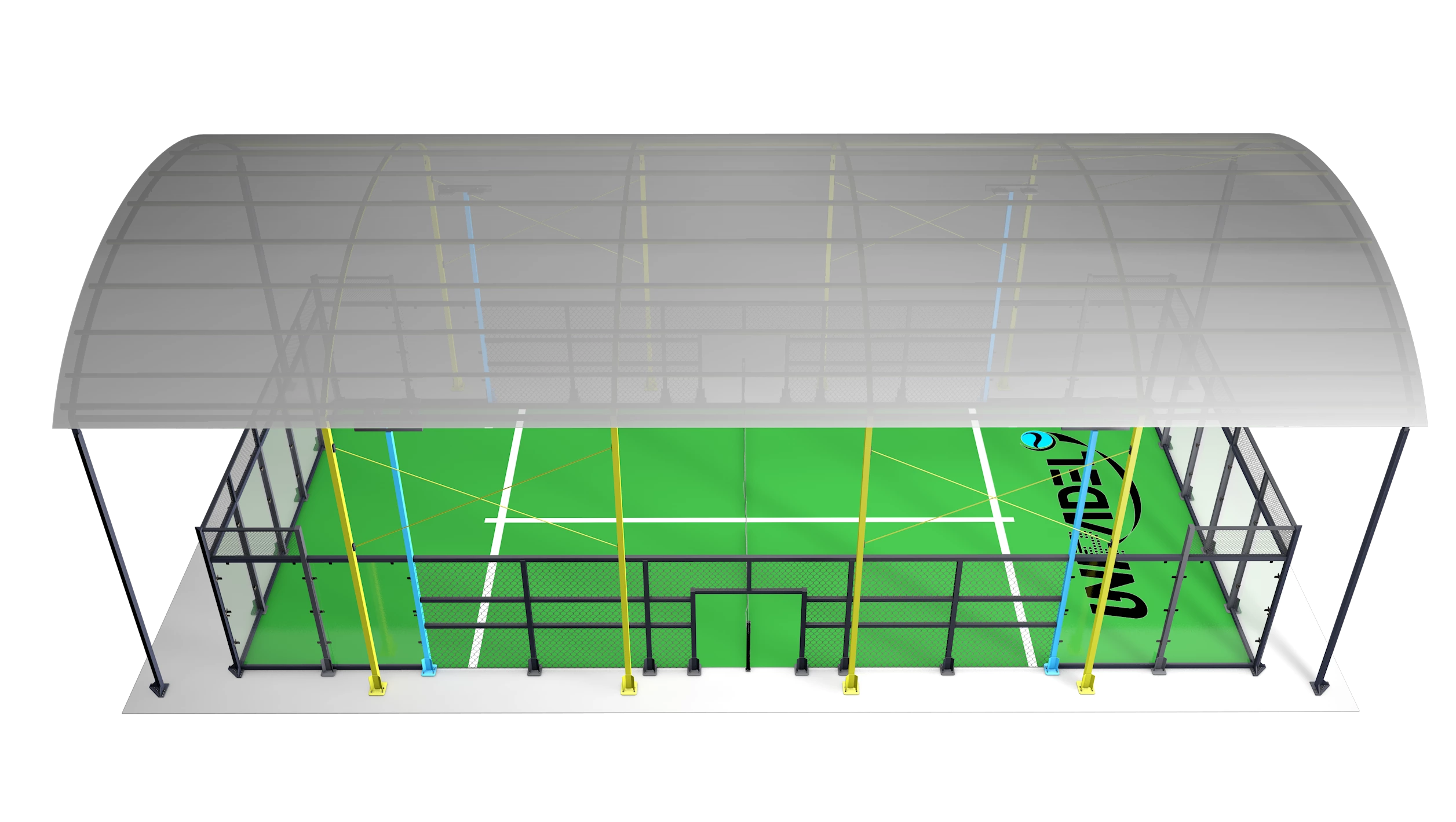

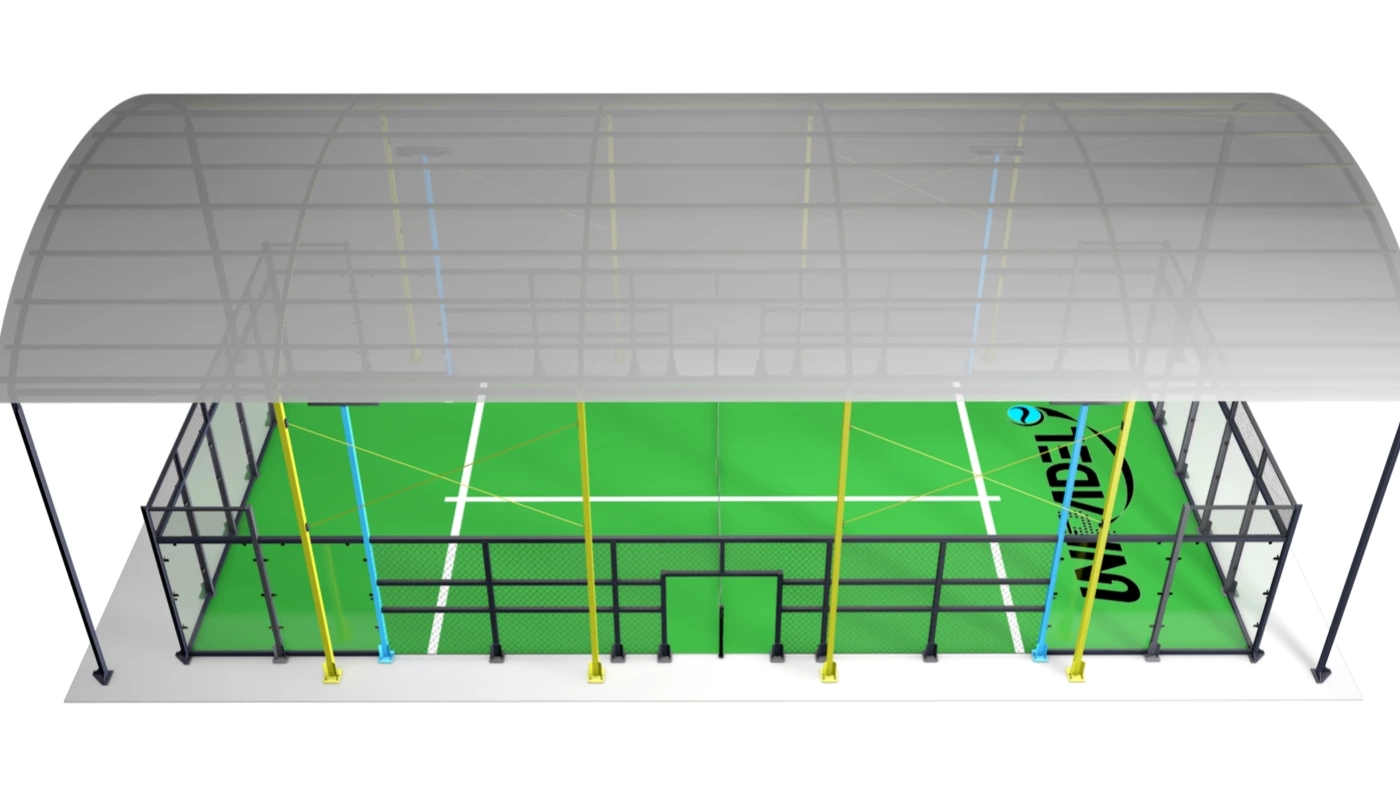

UNIPADEL - Classic Padel Court with Roof

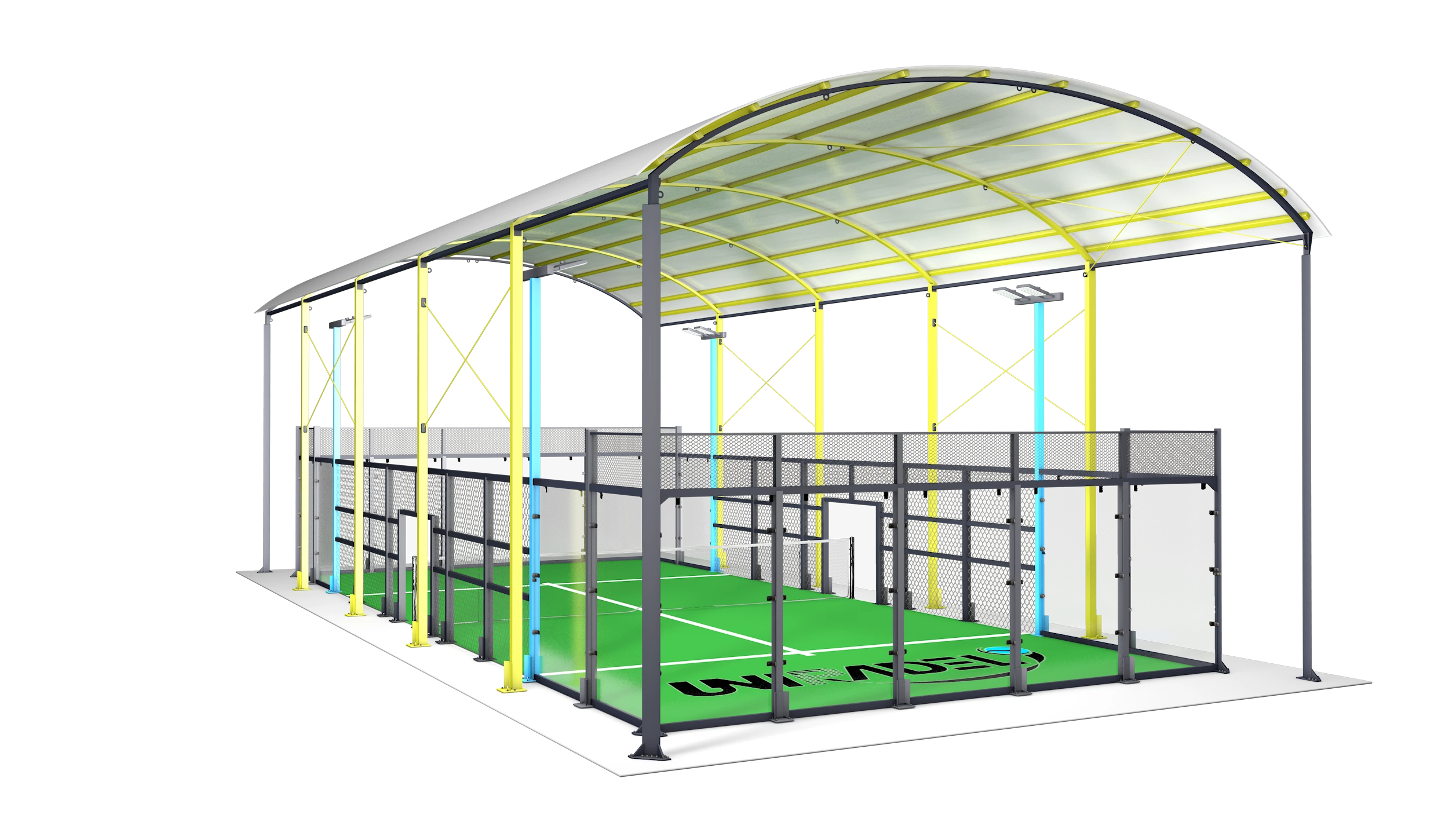

UNIPADEL - Classic Padel Court with Roof

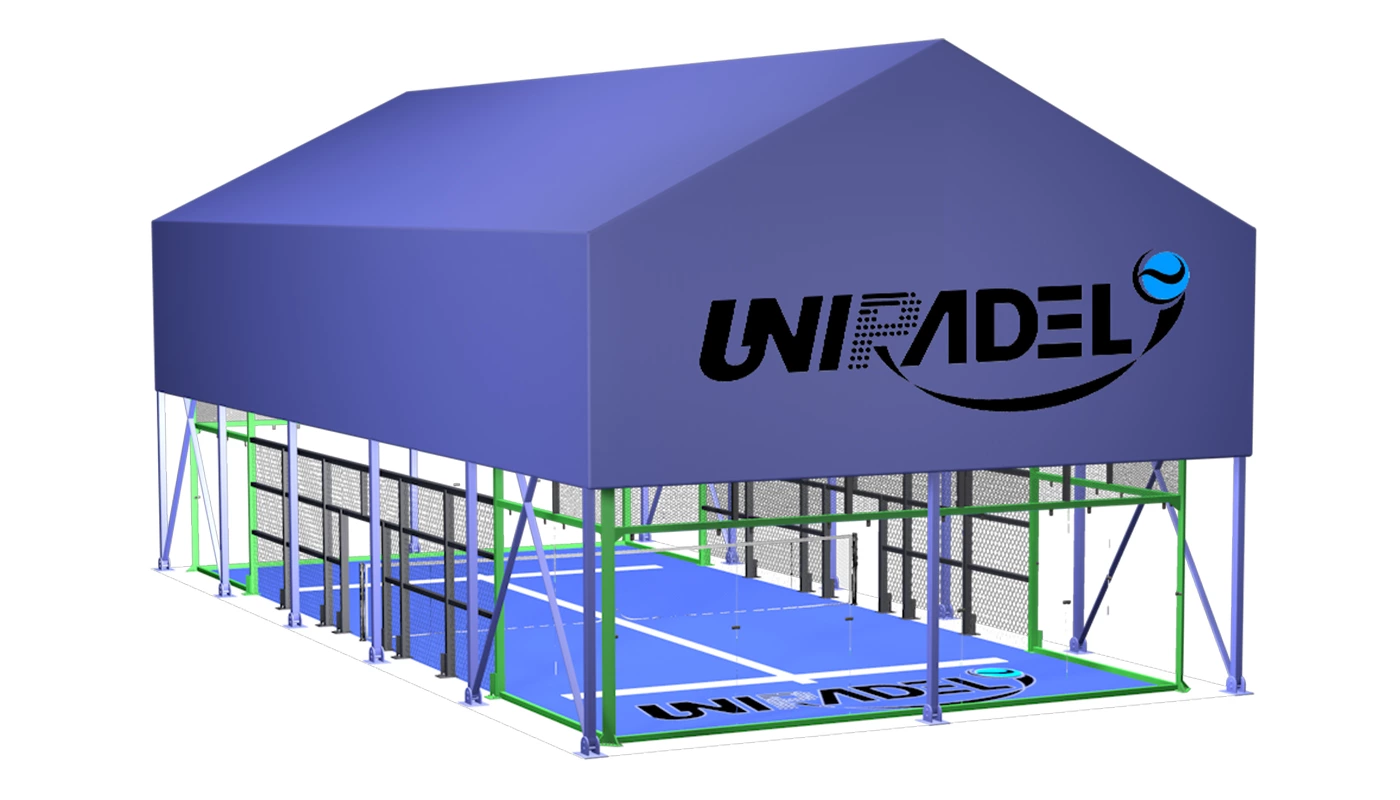

UNIPADEL - Classic Padel Court with Roof

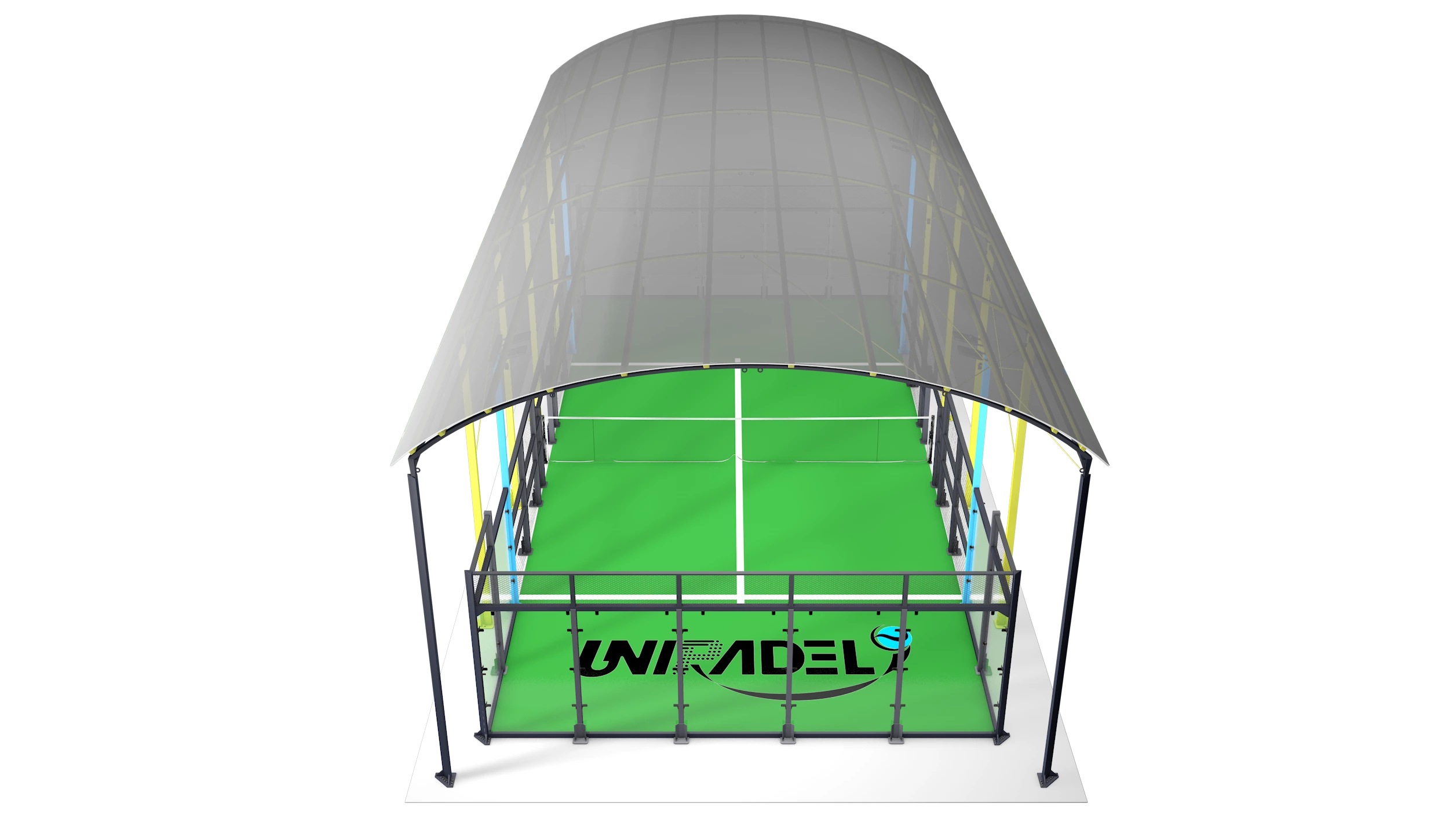

UNIPADEL - Classic Padel Court with Roof

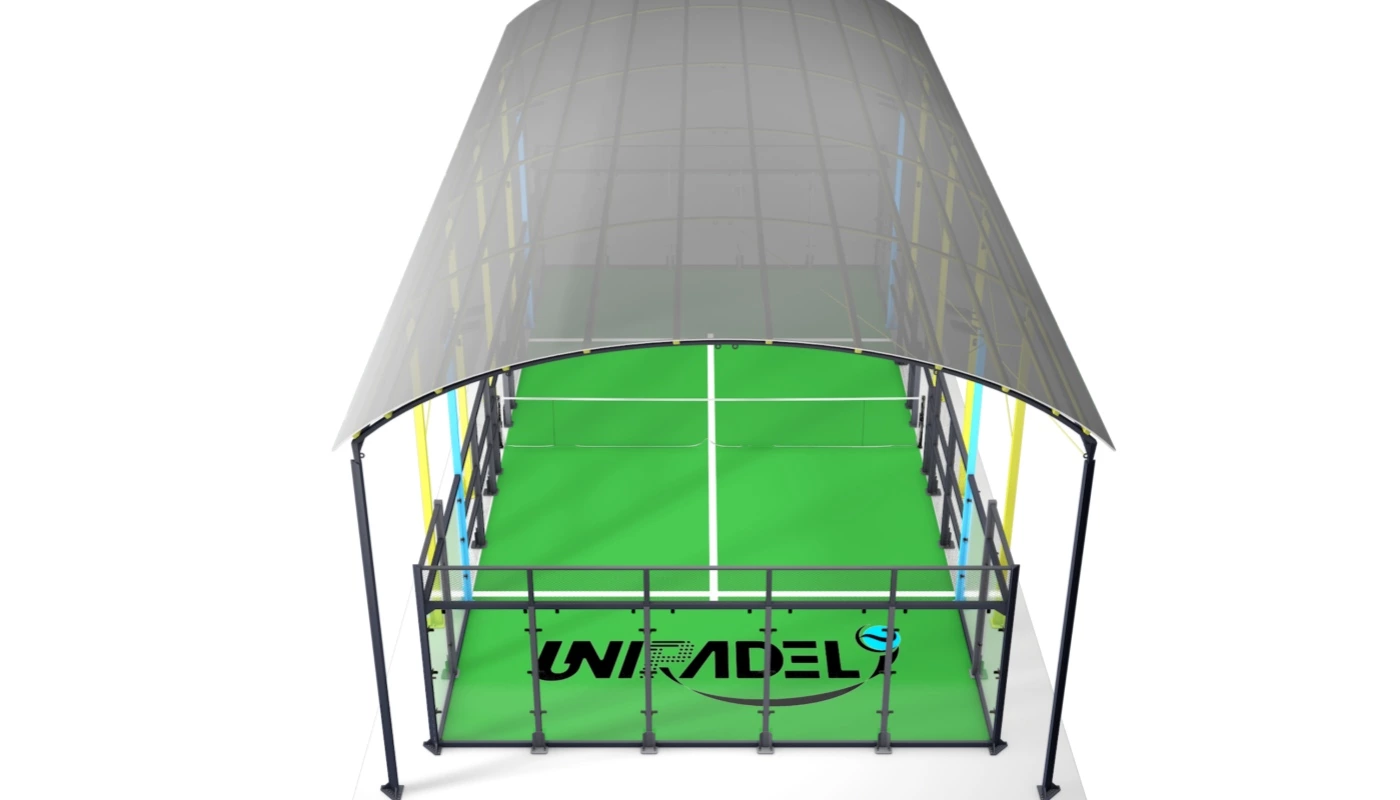

UNIPADEL - Classic Padel Court with Roof

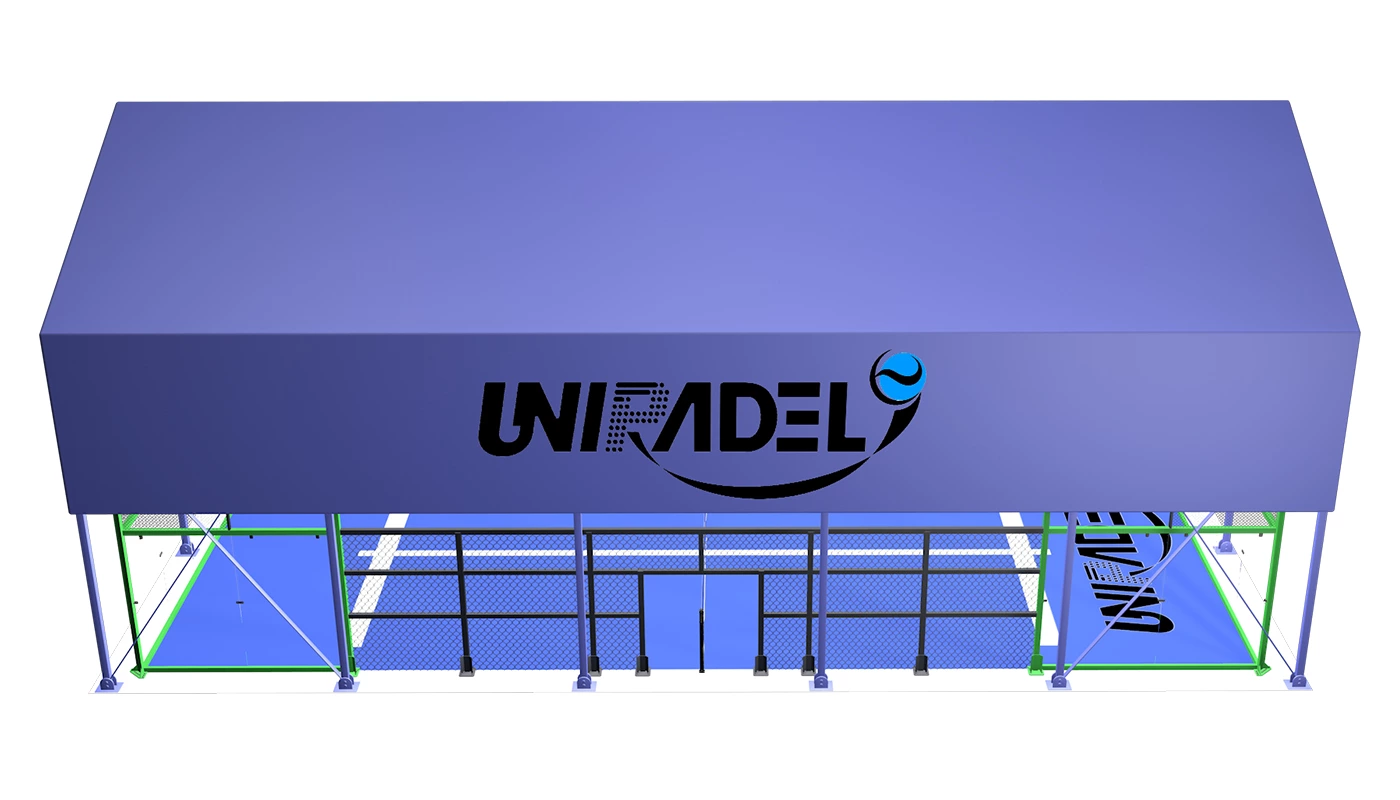

UNIPADEL - Classic Padel Court with Roof
Structure Technical Details
Padel Court Dimensions
The standard classic padel court with roof size is 10 meters wide and 20 meters long, with a rectangular layout. This compact size provides an efficient and tight space for competition, suitable for doubles competitions
Galvanized Steel Mesh
Material: Hot Galvanized Steel Grade: Q235B
Frame column size:50mm*30mm*2mm(c)
Surface treatment:Powder coating
Mesh hole size: 50mm*50mm*4mm
Mesh size : 1x2m/Piece
Galvanized Steel Post
Material: Hot Galvanized Steel Grade: Q235B
Column&Gate Post:80mm*60mm*3mm Length 3m
Steel Mesh :50mm*30mm*2mm
Crossbar: 150*50*3mm
Light Arm : 50*50*3mm,H3M"
Padel Court Tempered Glass
Thickness: 12mm
Light Transmission(TL %): 87%
Outdoor Reflection (RLe%):7.9%
Glass size: 1990mm*3000mm */pieces
Package: Wood Carton
Finish: Hole drilled"
Padel Turf
Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model
Pile height: 12mm
Yarn Dtex: 9500 Dtex
Backing: Latex PP+Net+Sbrwith white marking line together
Warranty: 8 years for outdoors
Color:Blue,Light Blue、Green、Purple 、Pink or customized
Certificate:CE, SGS, ROHS, REACH"
Padel Court Roof/Tent
The arched main beam is made of aluminum alloy profiles150*80*4.0mm thick,the crossbar is made ofaluminum profiles 50*50*2.$mm,the column is made ofaluminum profiles150*80*4.0mm thick,and the tarpaulin is made of PVC material 0.6mm thickSide height 6m, center height 8m.
Frame Structure: Aluminum alloy profiles
Main Profile Size: 204*120*4mm
Base size: 450*450mm
Cover: 850g/m*PVC
Temperature resistance (C):-30~70
Wind resistance: wind strength <10
Sidewall Height :3M fixed
Eave Height: 6M , Ridge Height:8M
Padel Court Lighting
Working voltage: AC220V
Power: 200W
Luminous efficiency: ≥120LM/W
Power factor: ≥0.95
Lamp bead color temperature: 5700K
Color rendering index: Ra70
Light source type: SMD 3030
Protection class: IP65
Working Temperature: – 25ºC ~ +45ºC
Padel Courts Design
UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.
The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.
In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.
Padel Turf (Customizable Color)
Blue
Green
