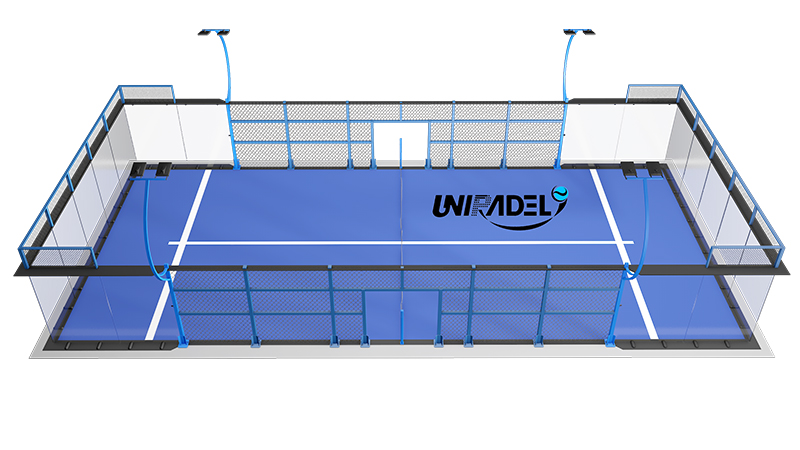

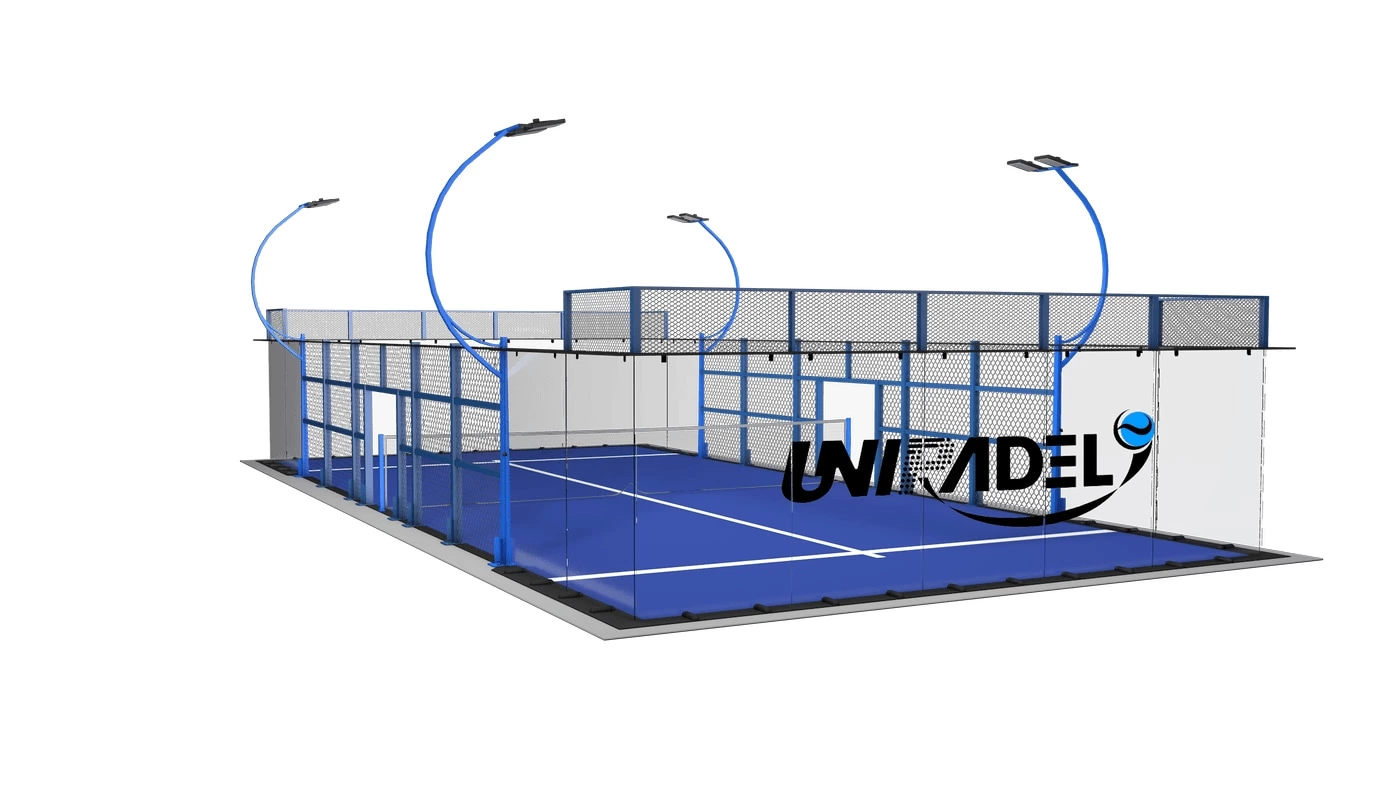

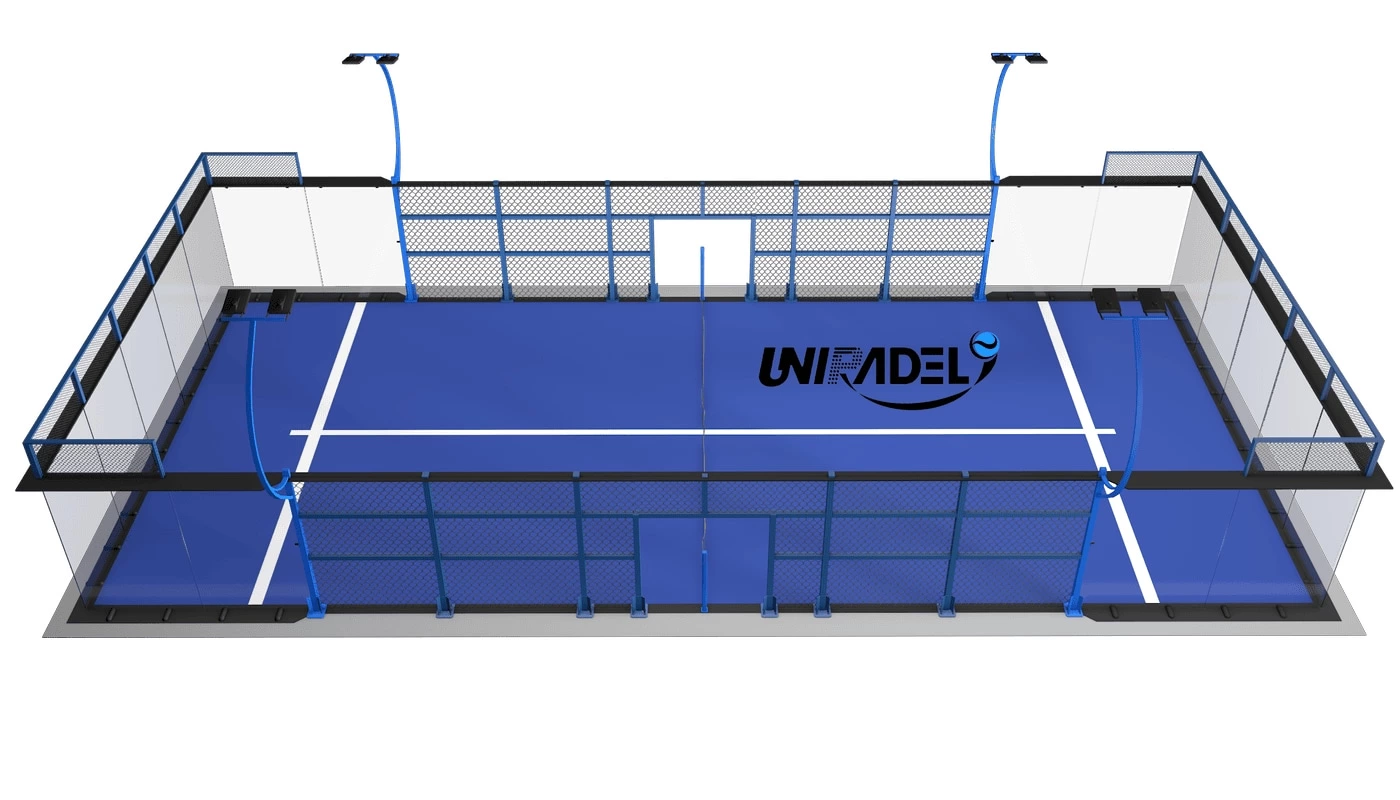

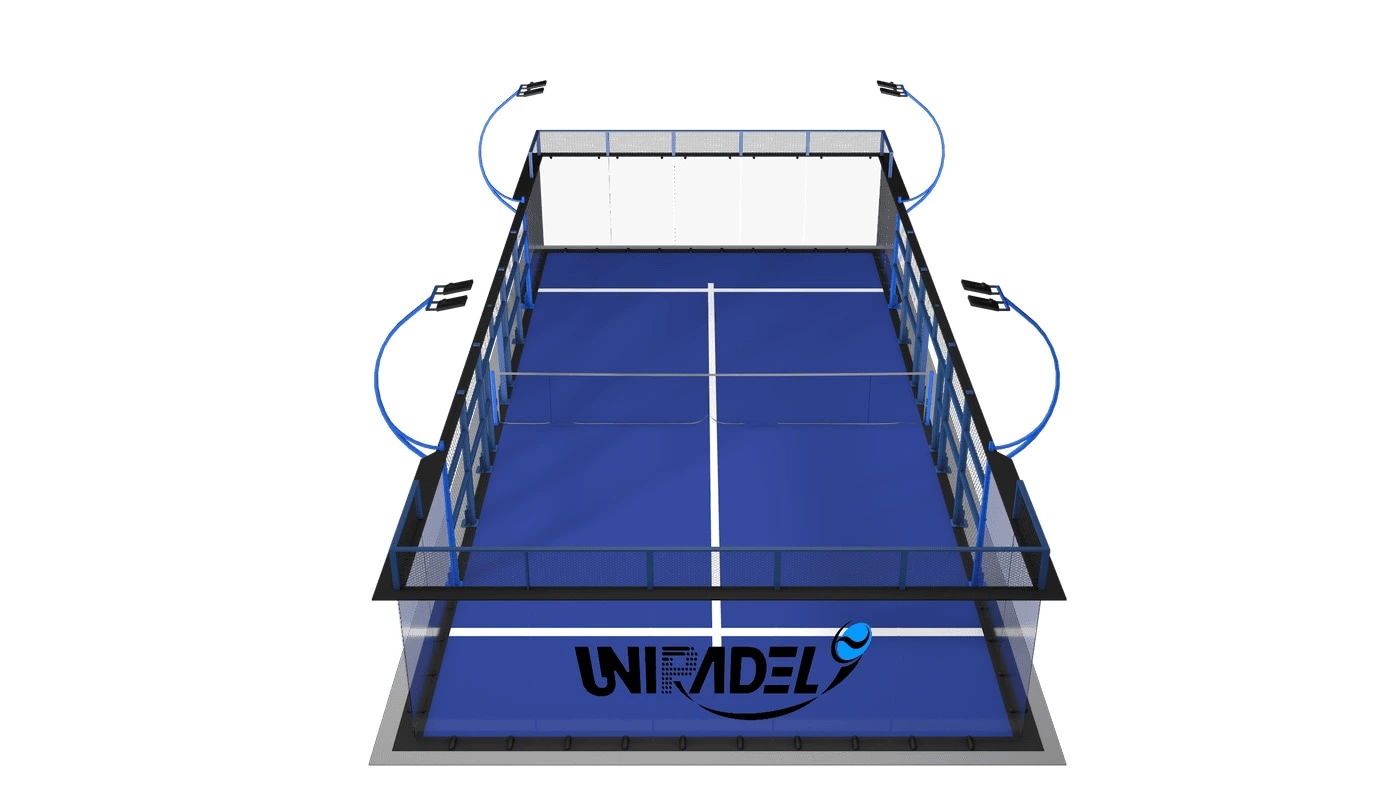

UNIPADEL - Full 360°panoramic Padel Court

Introduction

The main color of the panoramic 360° padel court is blue, which is mainly used for standard official padel competitions. This is also a hot-selling product in recent years. The lighting and turf systems throughout the stadium meet international competition standards. Although there are fewer columns, the overall steel structure glass can be stably supported without other interference, providing a safe and stable gaming experience. The total area is 10x20 meters, the lawn color can also be customized,

Colors Structure

UNIPADEL - Full 360°panoramic Padel Court
UNIPADEL - Full 360°panoramic Padel Court
UNIPADEL - Full 360°panoramic Padel Court
UNIPADEL - Full 360°panoramic Padel Court
UNIPADEL - Full 360°panoramic Padel Court
UNIPADEL - Full 360°panoramic Padel Court

Technical Details

Size

Width: 10 meters | Length: 20 meters

Tempered Glass

18PC of 12 mm Tempered Glass

Galvanized Structure

All the raw material from our structure is Hot Galvanized. Steel Grade: Q235B

All the parts that are welded and perfurated go through an extra Zinc Treatment

Hot Galvanized raw material with extra ZINC Treatment after all process

Mesh

Hot Galvanized raw material with extra ZINC treatment after all the process Electro welded mesh with 50 x 50 x 4mm

Artificial Grass

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Infill: Sand

Colours: Blue, Red and Green

Lighting System

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Grass Types Used

blue
Blue
green
Green
red
Red
