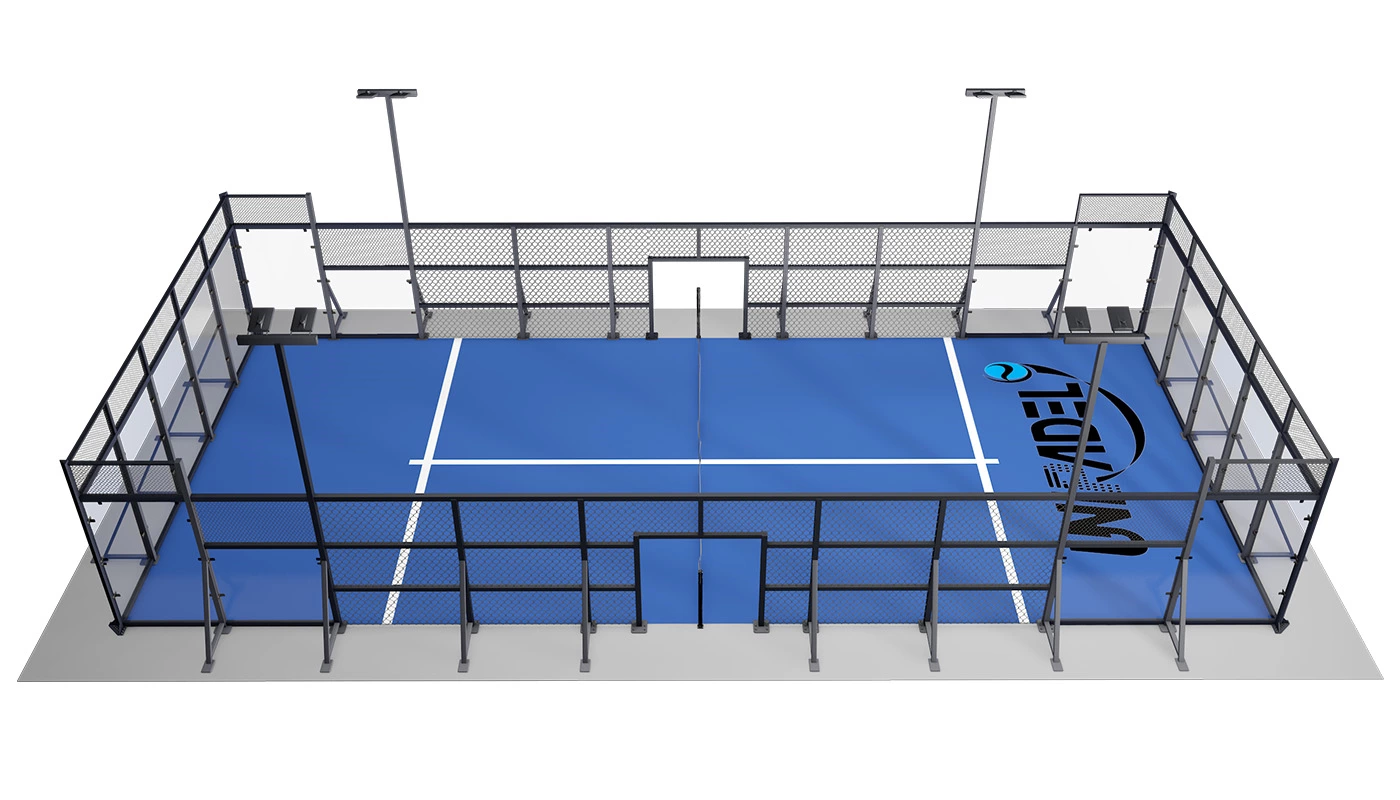

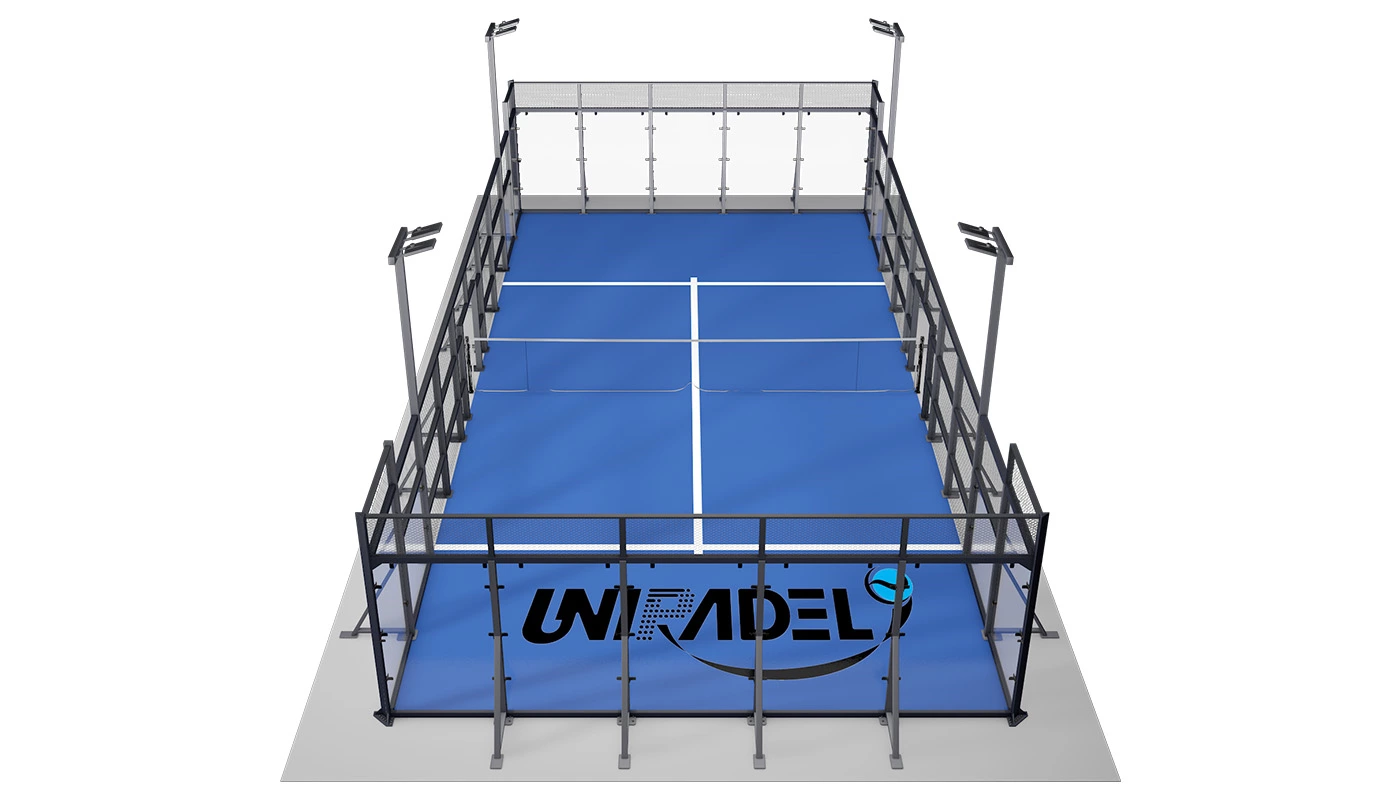

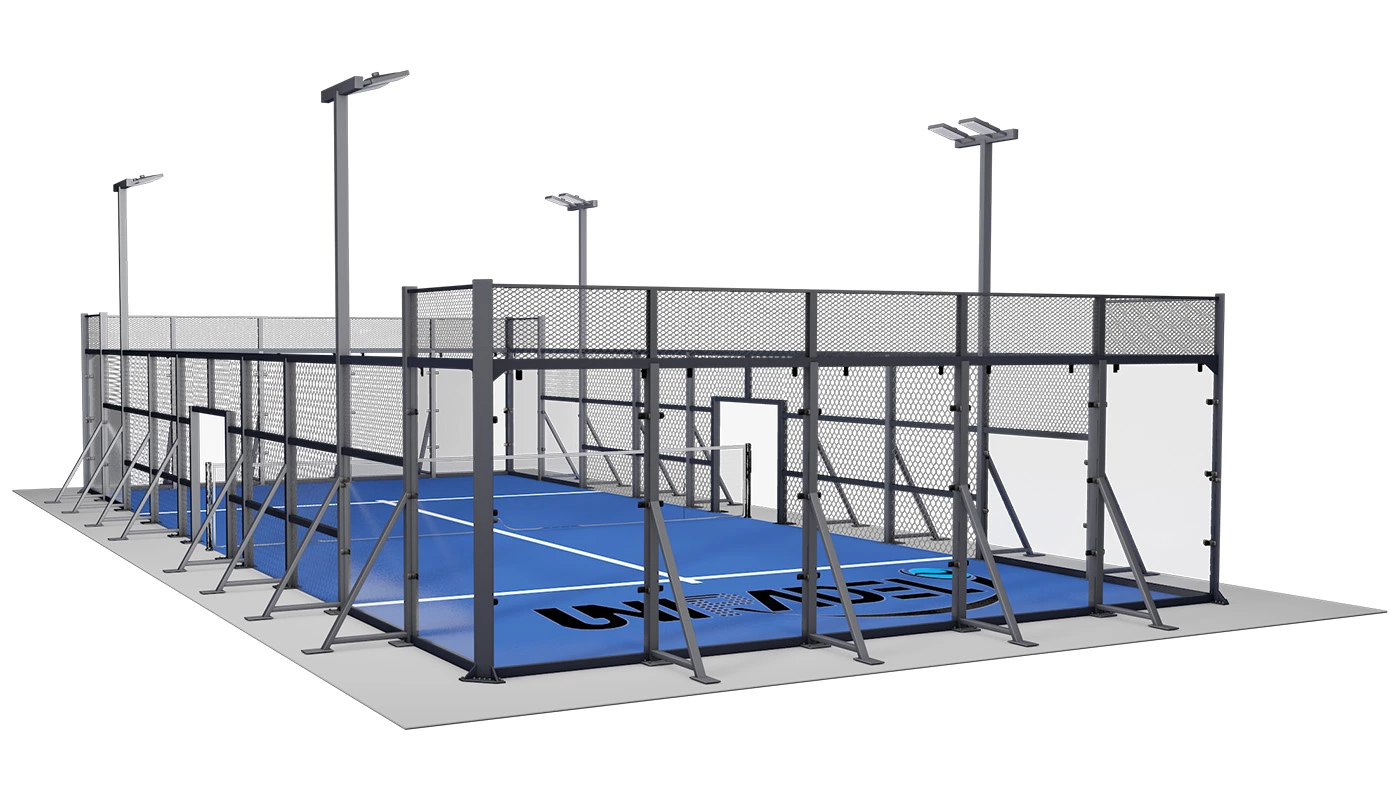

UNIPADEL - Portable Padel Court

Introduction

The portable padel is the most special product we produce. It can be moved at any time. There are 24 supporting columns on the periphery that can be adjusted and moved to the position you want. It is generally suitable for outdoor use.

Colors Structure

UNIPADEL - Portable Padel Court
UNIPADEL - Portable Padel Court
UNIPADEL - Portable Padel Court
UNIPADEL - Portable Padel Court
UNIPADEL - Portable Padel Court
UNIPADEL - Portable Padel Court

Technical Details

Size

Width: 10 meters | Length: 20 meters

Tempered Glass

18PC of 12 mm Tempered Glass

Galvanized Structure

All the raw material from our structure is Hot Galvanized. Steel Grade: Q235B

All the parts that are welded and perfurated go through an extra Zinc Treatment

Hot Galvanized raw material with extra ZINC Treatment after all process

Mesh

Hot Galvanized raw material with extra ZINC treatment after all the process Electro welded mesh with 50 x 50 x 4mm

Artificial Grass

Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model

Pile height: 12mm

Yarn Dtex: 9500 Dtex

Infill: Sand

Colours: Blue, Red and Green

Lighting System

Working voltage: AC220V

Power: 200W

Luminous efficiency: ≥120LM/W

Power factor: ≥0.95

Lamp bead color temperature: 5700K

Color rendering index: Ra70

Light source type: SMD 3030

Protection class: IP65

Working Temperature: – 25ºC ~ +45ºC

Column Support Frame

24 in total, length: 1672mm, width: 220mm

Installation vertical distance: 1800mm

Bottom parallel bracket length: 763mm

Grass Types Used

blue
Blue
green
Green
red
Red
