Introduction

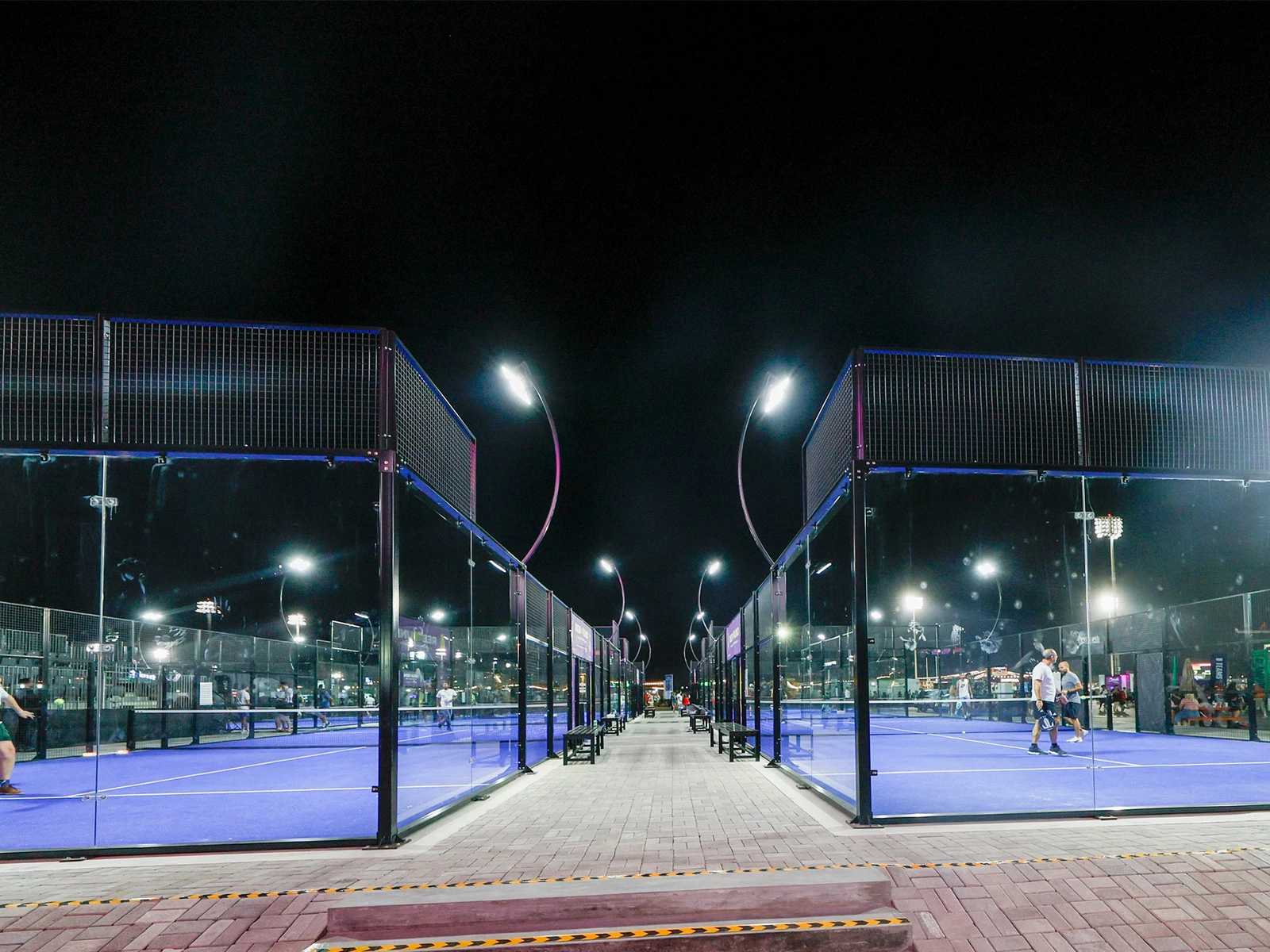

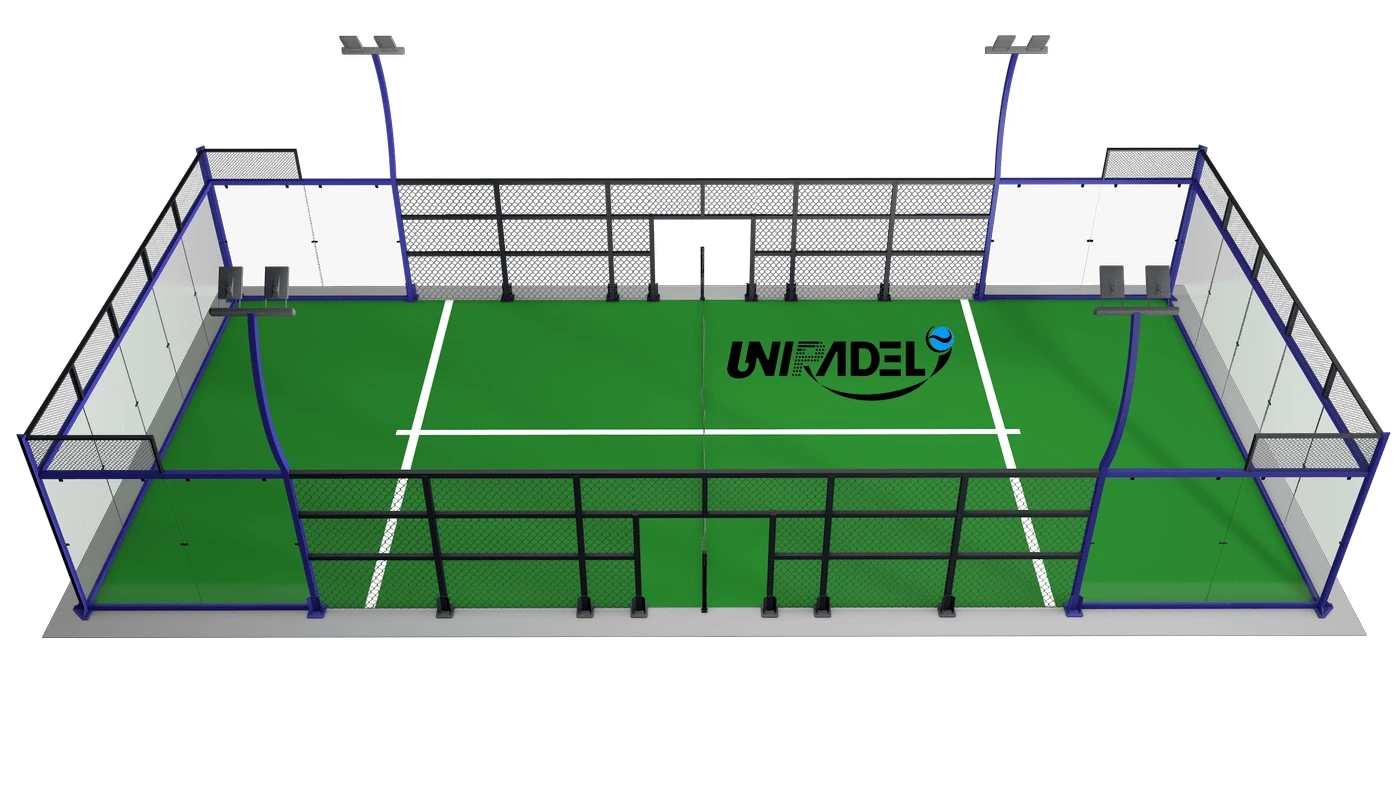

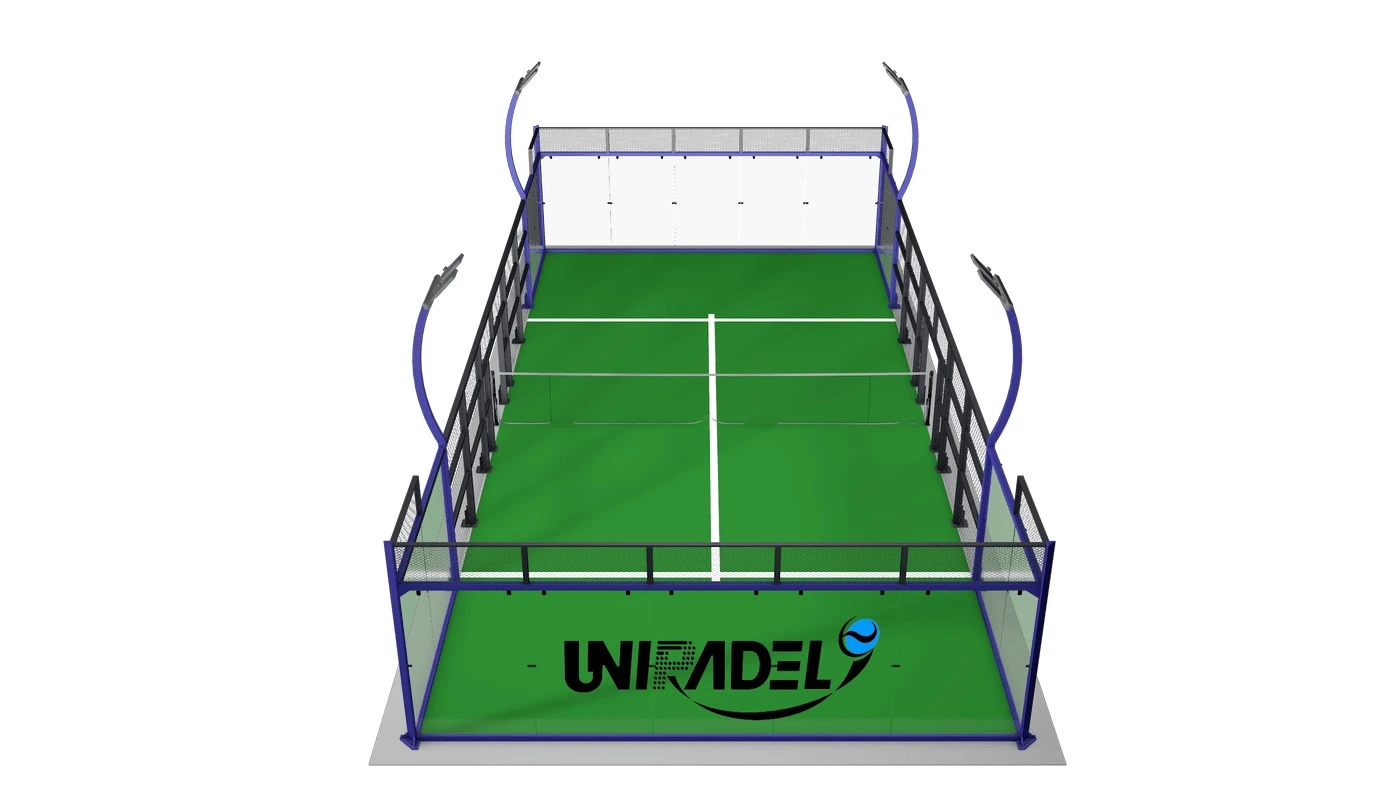

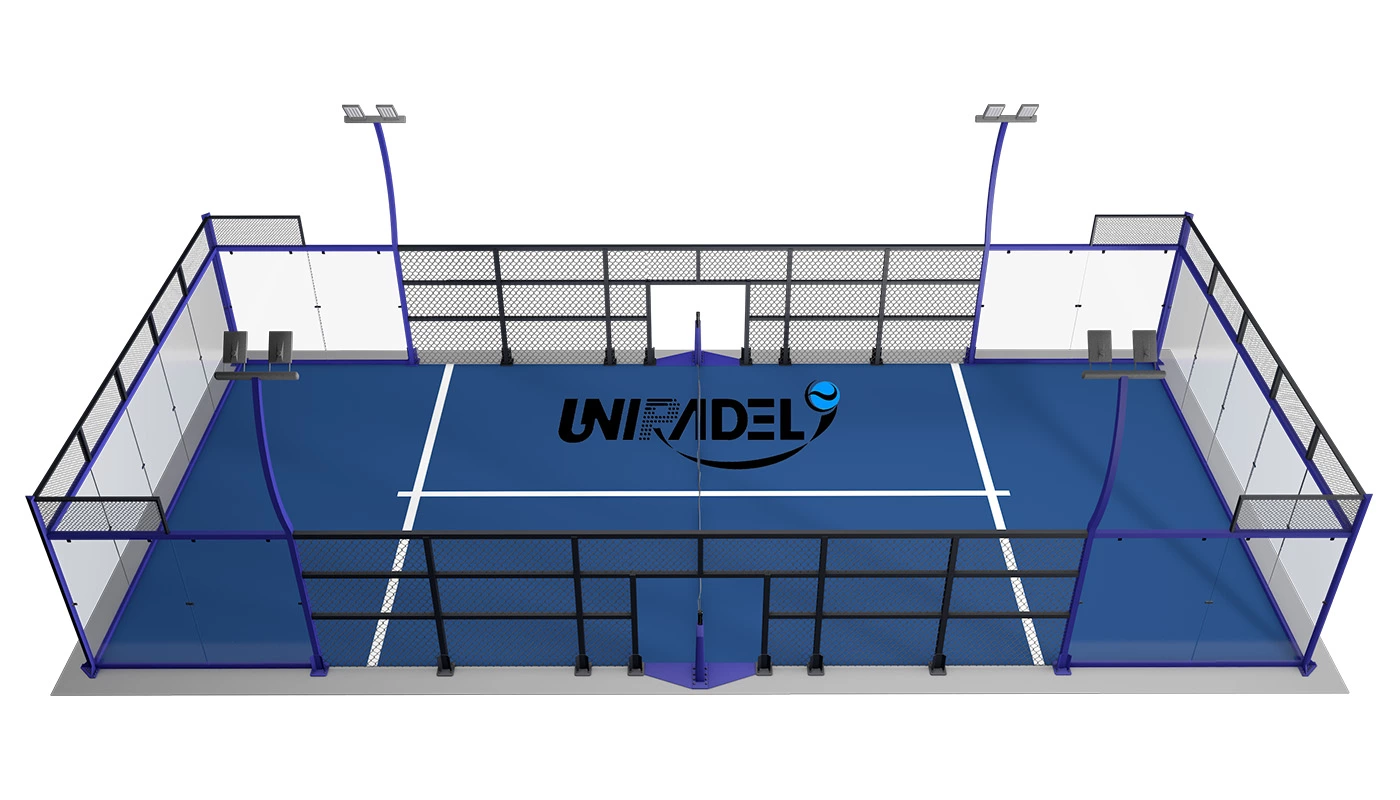

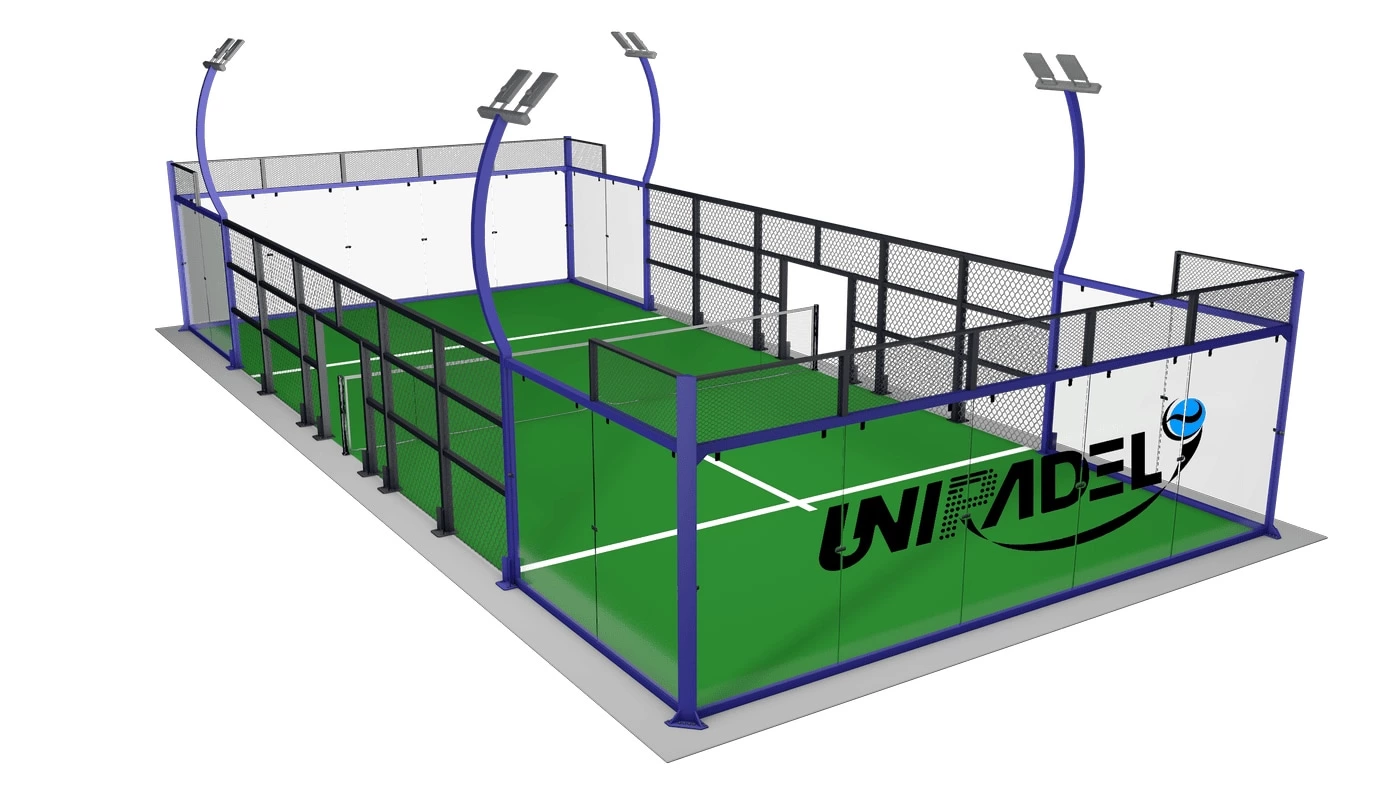

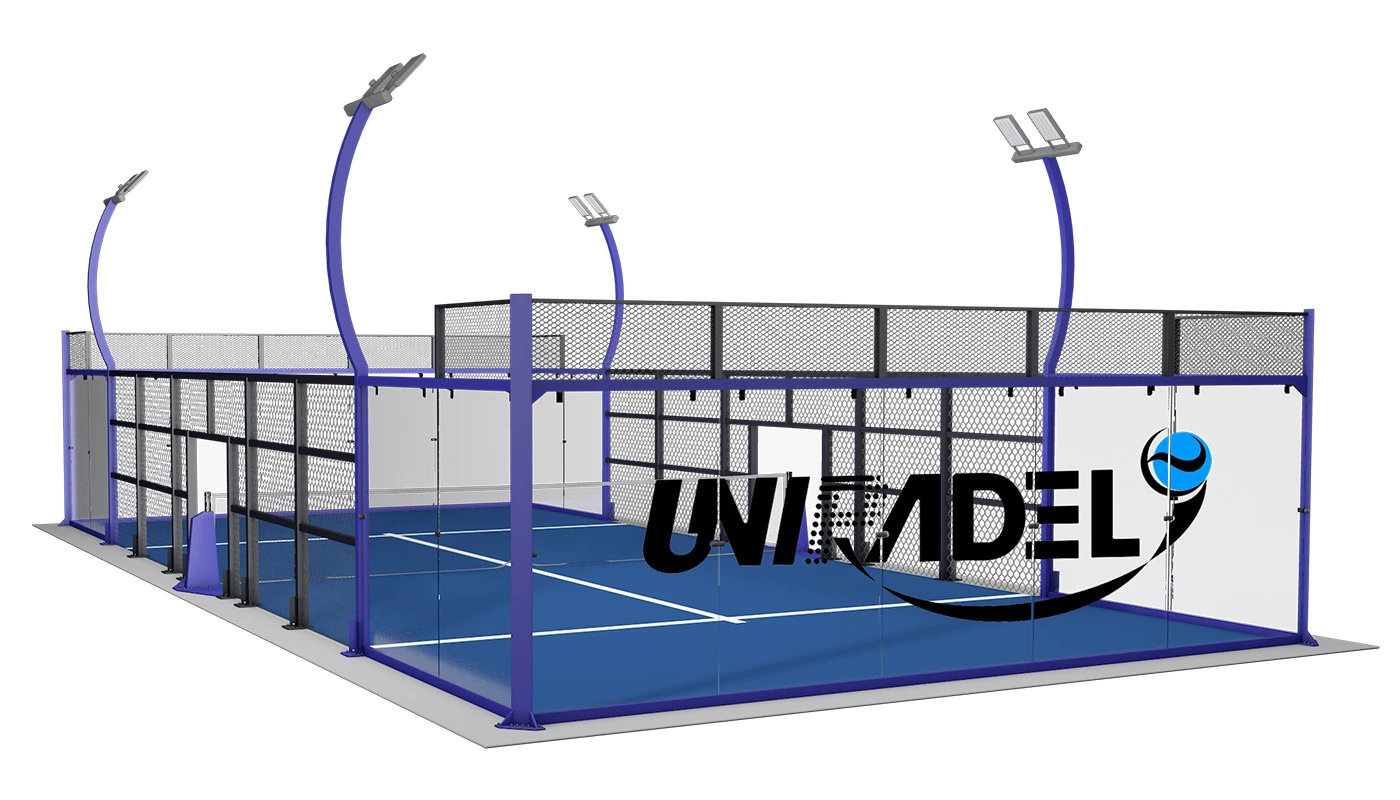

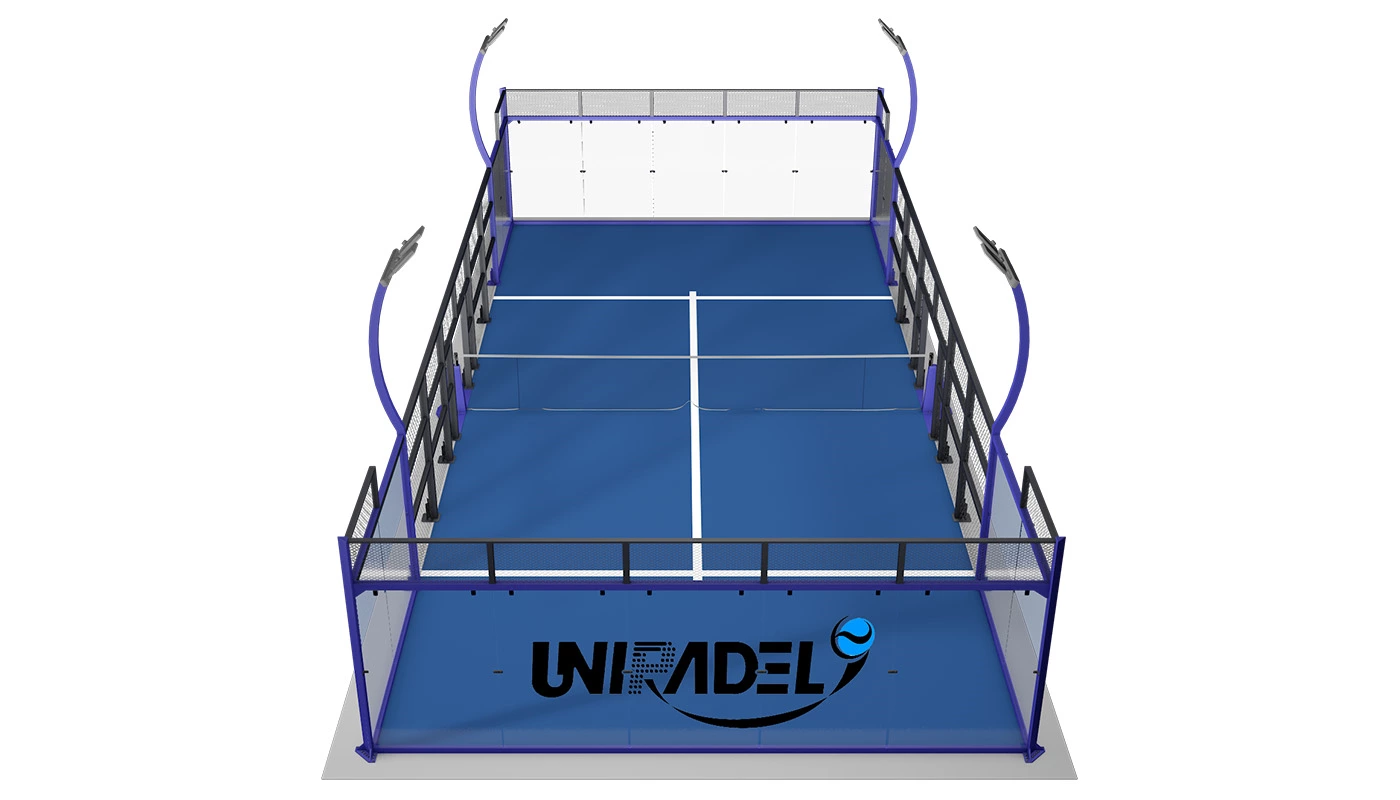

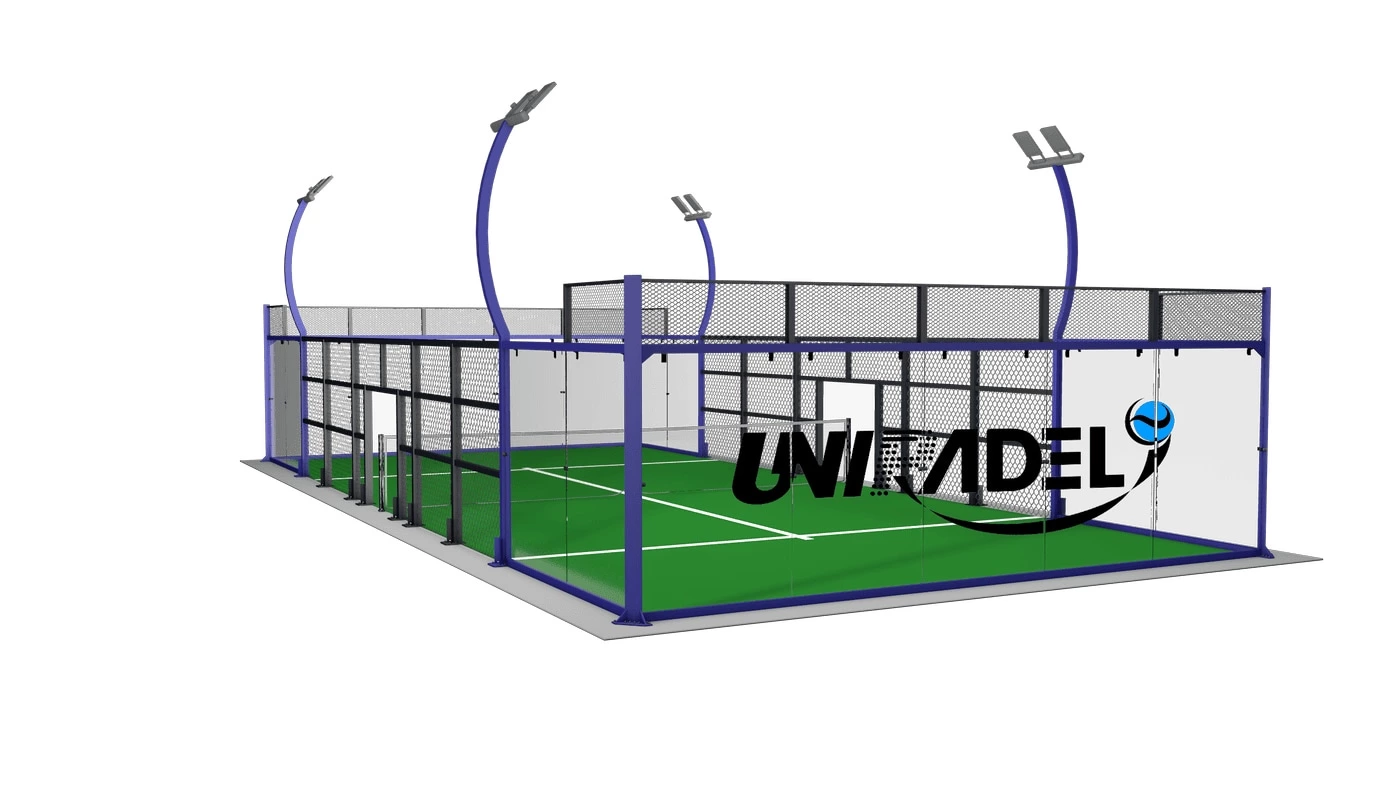

It adopts a full glass wall design to ensure a wide view inside and outside the stadium, enhancing viewing and interactivity. The C-shaped lamppost is one of the highlights of this kind of stadium. This lamp post design presents a C-shaped curved shape, which can provide uniform lighting effects. C-shaped lamp posts are usually installed at the four corners or sides of the court to ensure that the entire court is free of shadows and provides good light distribution when used at night. The panoramic padel court is mainly used for official competitions, training and entertainment activities. Its panoramic design and high-quality lighting system make the stadium suitable for use at all times, day or night.
Gallery
Colors Structure
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2307/colors-structure-1-!j.webp)
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2307/colors-structure-2-!j.webp)
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2307/colors-structure-3-!j.webp)
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2307/colors-structure-4-!j.webp)
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2307/colors-structure-5-!j.webp)
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2307/colors-structure-6-!j.webp)
Technical Details
![UNIPADEL - Panoramic Padel Court With C-shaped](https://c61.hongcdn.com/uploads-gzun/2312/9cc4dbcfa7daa8f113ade1b3d45e4c6-5314-!j.webp)
Size
Width: 10 meters | Length: 20 metersTempered Glass
18PC of 12 mm Tempered GlassGalvanized Structure
All the raw material from our structure is Hot Galvanized. Steel Grade: Q235B
All the parts that are welded and perfurated go through an extra Zinc Treatment
Hot Galvanized raw material with extra ZINC Treatment after all process
Mesh
Hot Galvanized raw material with extra ZINC treatment after all the process Electro welded mesh with 50 x 50 x 4mmArtificial Grass
Fibrillated polypropylene artificial turf fiber with progressive fibrillation alignment model
Pile height: 12mm
Yarn Dtex: 9500 Dtex
Infill: Sand
Colours: Blue, Red and Green
Lighting System
Working voltage: AC220V
Power: 200W
Luminous efficiency: ≥120LM/W
Power factor: ≥0.95
Lamp bead color temperature: 5700K
Color rendering index: Ra70
Light source type: SMD 3030
Protection class: IP65
Working Temperature: – 25ºC ~ +45ºC
Grass Types Used
![blue](https://c61.hongcdn.com/theme/skin-gzun/images/used-4-!j.webp)
Blue
![green](https://c61.hongcdn.com/theme/skin-gzun/images/used-3-!j.webp)
Green
