Introduction
Padbol is an innovative sport that combines elements of football, padel tennis and squash, and its professional courts provide a unique competitive space for the game.

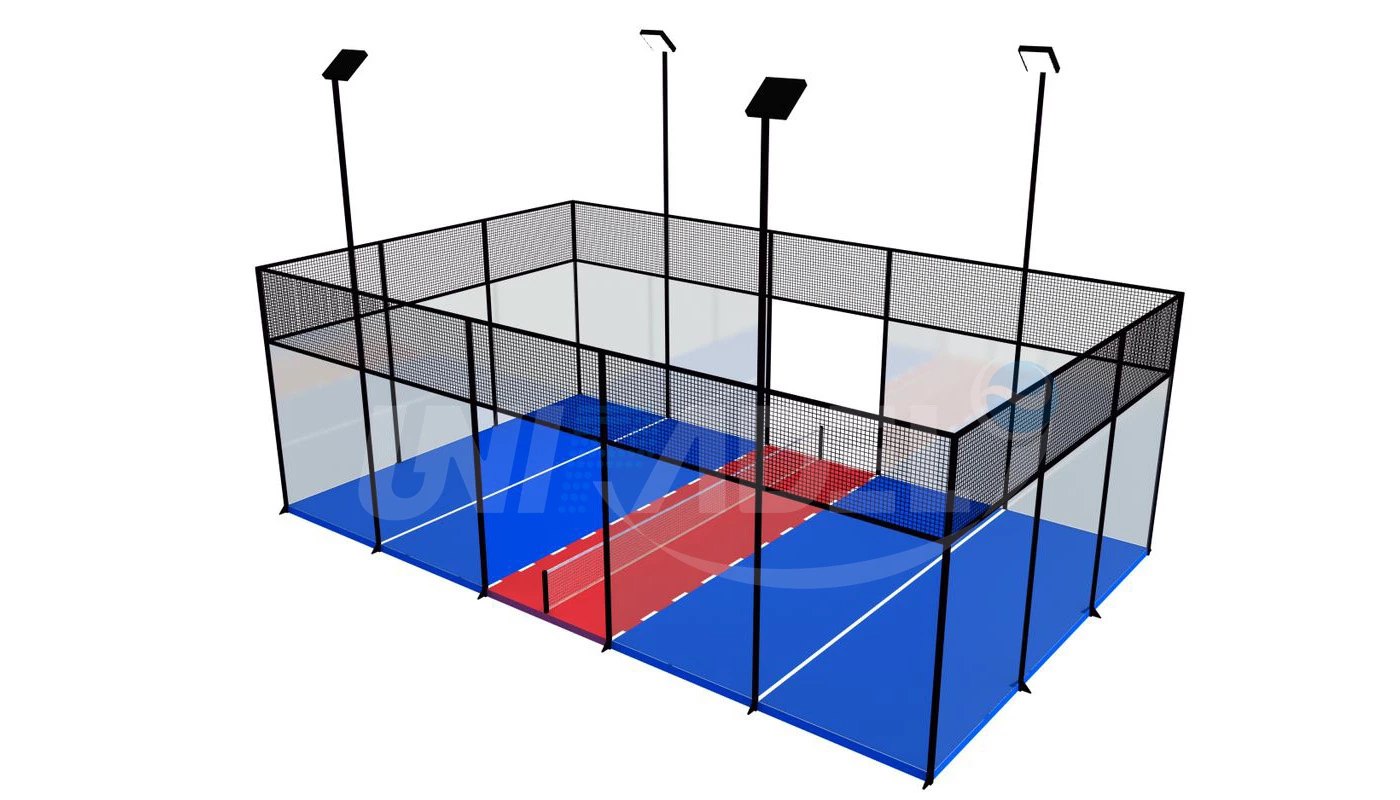

The padbol court dimensions are about 10 m (33 ft) long and about 6 m (20 ft) wide, similar to traditional padel courts, but more compact. The court is divided into two areas by a central net and surrounded by four glass walls, which players can use to bounce the ball. The ground system uses professional interlocking tile sports flooring, which provides excellent grip and shock absorption performance, ensuring stability and safety for every turn, jump and landing.
Padbol Court Dimensions

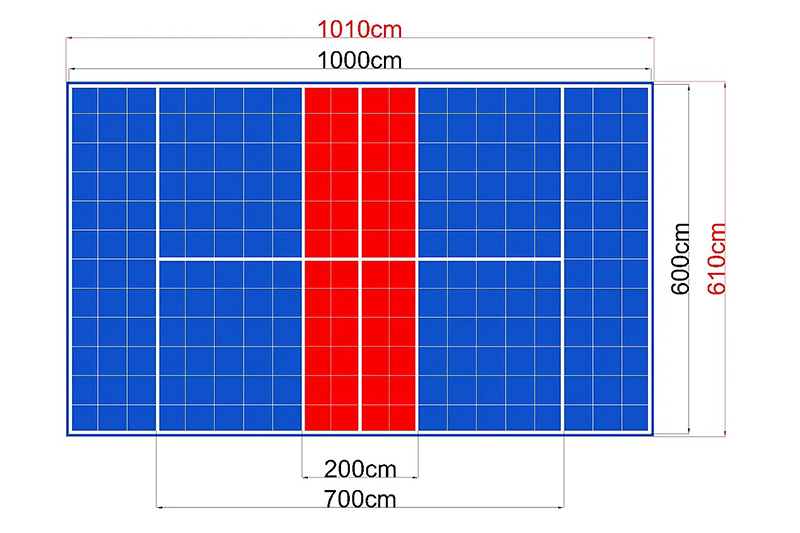

The Padbol court sizes approximately 10 meters (33 feet) long, 6 meters (20 feet) wide, 3 meters high for the arm and 3 meters high for the glass, for a total height of 6 meters.
Hot-dip Galvanized Frame & Structure
Imported polyester powder electrostatic spraying, point-to-point welding, more stable and quieter. The mesh wire is welded directly on the machine to reduce the contact area of the welding point. Standard: GB/T6728-2017, Grade: Standard zinc content 650g/m2, hot-dip galvanizing, thick galvanized layer, self-contained zinc layer, and has double anti-corrosion and anti-rust properties after spraying.
The padbol court galvanized steel mesh and galvanized steel column are both Q235B model, The structure is made of 80×40×3mm and 80×60×3mm steel corner columns and columns, combined with 50×30×2mm door frame columns and 1×2m steel mesh with a mesh size of 50×50×4mm.
Padbol Glass
12mm tempered glass (1990mm*3000mm/piece, 180kg) complies with EN12150-2:2004 standard, compressive strength>125MPa, impact strength is 4 times higher than ordinary glass, light transmittance is 87%, resistant to 110°C temperature difference, surface drilling treatment, suitable for standard competition and entertainment type padbol courts.
Led Lighting System
The padbol court LED lighting system uses Mean Well power supply and high-end brand lamp beads, 200W power, luminous efficiency ≥120LM/W, luminous flux>24000Lm, color temperature 5700K, color rendering index Ra70, IP65 protection level, working temperature -25℃～+45℃, life ≥50000 hours, voltage AC220V, power factor ≥0.95.

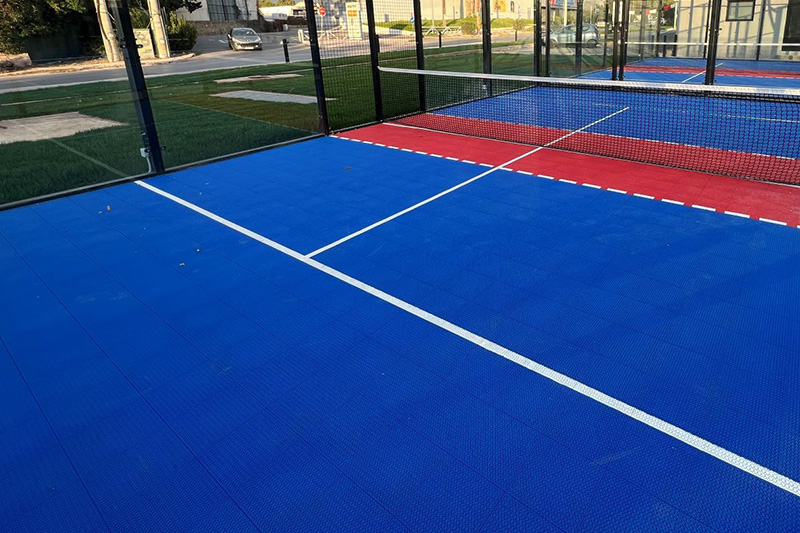

Padbol Court Flooring
The padbol court uses 60 square meters of interlocking tiles made of TPE material (size 25×25×2mm), which have more than 40% shock absorption and more than 98% ball rebound performance.
