Introduction
Introducing the custom electric tent padel court, a revolutionary design that redefines the way players experience padel. It adopts a fully enclosed, semi-closed structure., wrap-around structure that ensures optimal play in any weather condition. The standout feature is its electric tent roof, which can be opened to let in natural light and fresh air on beautiful days, or closed to provide shelter during inclement weather.
For those seeking a tailored solution, whether it's a hot summer day or a chilly winter evening, this court adapts to meet the needs of its users. Combining cutting-edge technology with functionality, this court is the ultimate choice for padel enthusiasts and clubs looking to provide a top-tier facility.
Material Characteristics and Court Design
Padel Court Tent Dimensions
- Length: Unlimited (standard 22~50m)
- Span: ≤24m
- Height Specifications:
- 8m Side Height: Top Height 9.64m
- 10m Side Height: Top Height 10.64m
- Moving Structure Height: 2m
- Columns: HN300 × 150
- Main Beams: HN200 × 100

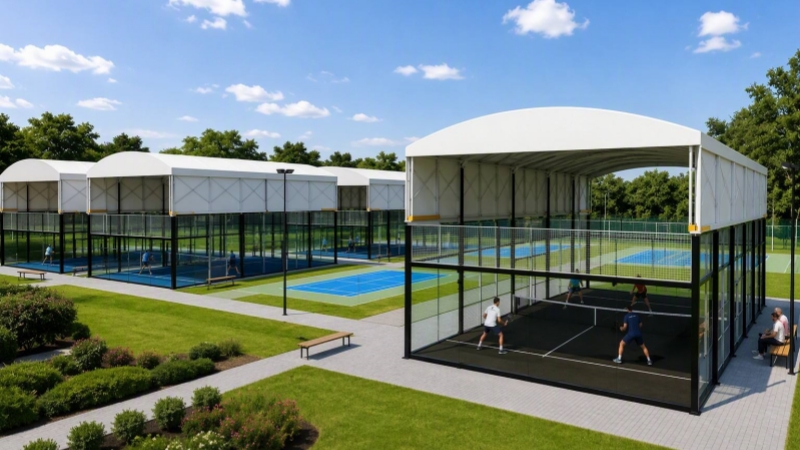

Flexible Modular Design
- Independent Modular Opening and Closing: The structure consists of 3 independent modules, each of which can be opened and closed independently. This means that when there are few customers or the weather is fine, only part of the area can be opened, reducing energy consumption.
- All-Weather Applicability: On sunny days, it can be fully opened to create a trendy outdoor court; on rainy days or at midday, it can be closed for sun protection and waterproofing, ensuring year-round operation, improving venue utilization and member premium pricing.

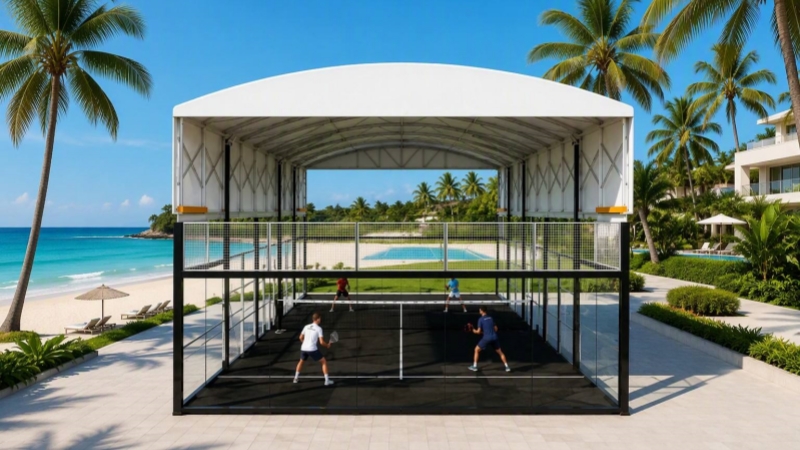

Ultimate Safety and Durability
- Sturdy Structure: Constructed entirely of Q235B national standard hot-dip galvanized steel, professionally mechanically tested, it can withstand winds of force 8-10 and earthquakes of magnitude 3, and is even suitable for high-salt-spray corrosive environments such as the seaside.
- High-Quality Materials: The canopy uses 850g industrial-grade thickened PVC film, featuring B1-level flame retardancy, 100% waterproofing, and high UV protection, with a designed service life exceeding 10 years.

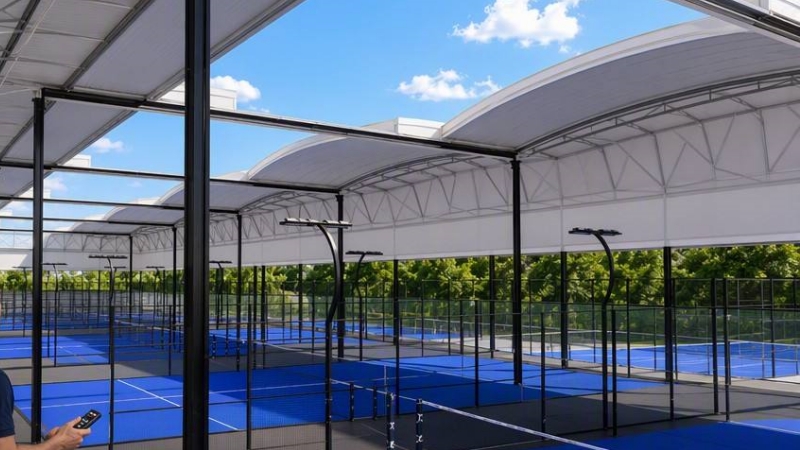

Intelligent One-Button Control
- Intelligent Control System: Equipped with 24 synchronous motors, supporting one-button full opening, full closing, or partial opening. Only one staff member is needed to manage the entire course, eliminating the need for additional manpower.
- Dual Safety Guarantee: Features both electronic and mechanical limit switches and overload protection, along with a manual crank emergency mechanism. Even in the event of a power outage, the crank can be manually retracted, simplifying maintenance and reducing the failure rate.
Rapid Delivery and Compliance Adaptation
- Rapid Construction: The complete installation of a standard 6-court system takes only 20 days, reducing the construction period by 60% compared to traditional fixed solutions. Furthermore, as a detachable temporary steel structure, it simplifies the cumbersome permanent building approval process.
- FIP International Standard Adaptation: Designed specifically for paddle tennis, with a clear height of 10 meters under the eaves, it fully complies with FIP hitting vision and lighting installation specifications, supporting complete relocation and reuse after the court's lease expires, thus protecting asset value.
Post Colors
UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.
The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.
In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.
Turf Artificial Grass
UNIPADEL curly textured padel turf is the most popular choice on the current market and is widely used in the World Padel Tour (WPT) and many professional competitions. The characteristic of this artificial turf is that the fibers on its surface are specially designed to form a unique texture and pattern in a curled or twisted way, which provides athletes with better grip and traction and enhances the realism of the game.
Curly padel turf not only improves sports performance, but also creates a more comfortable game experience for players. In addition, the turf can be made of a variety of synthetic fiber materials, and the performance and durability of each material varies from manufacturer to manufacturer, which makes different types of turf show obvious differences when used. We are committed to using high-quality raw materials to ensure that we provide top-quality products for high-level competitions and professional padel players to meet their strict requirements for quality and performance.
Whether on the training ground or in competition, UNIPADEL curly turf will become a reliable partner for athletes' performance, making every game full of passion and challenge.
UNIPADEL Curled Turf
A high-performance artificial turf system with a curly fiber structure
