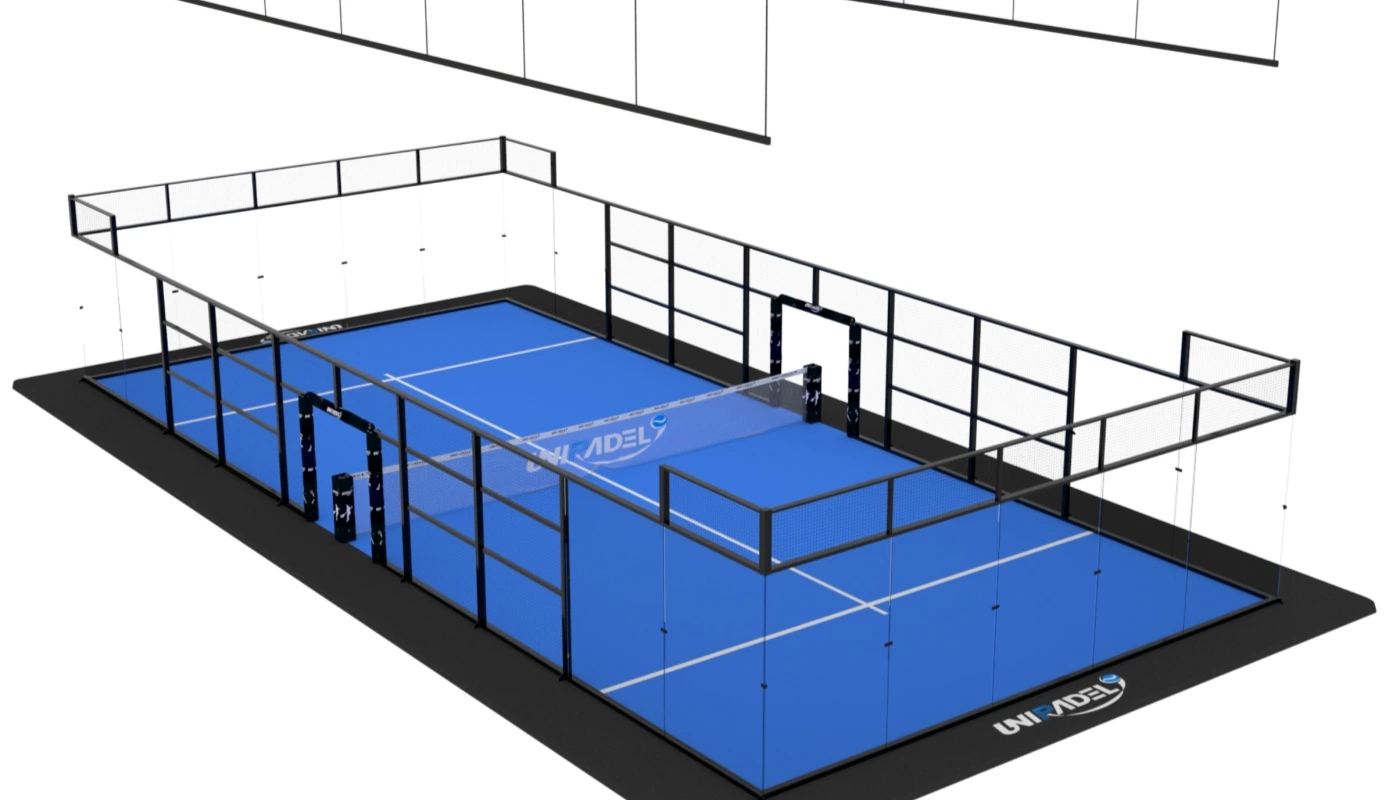

Indoor Padel Court With Linear Light

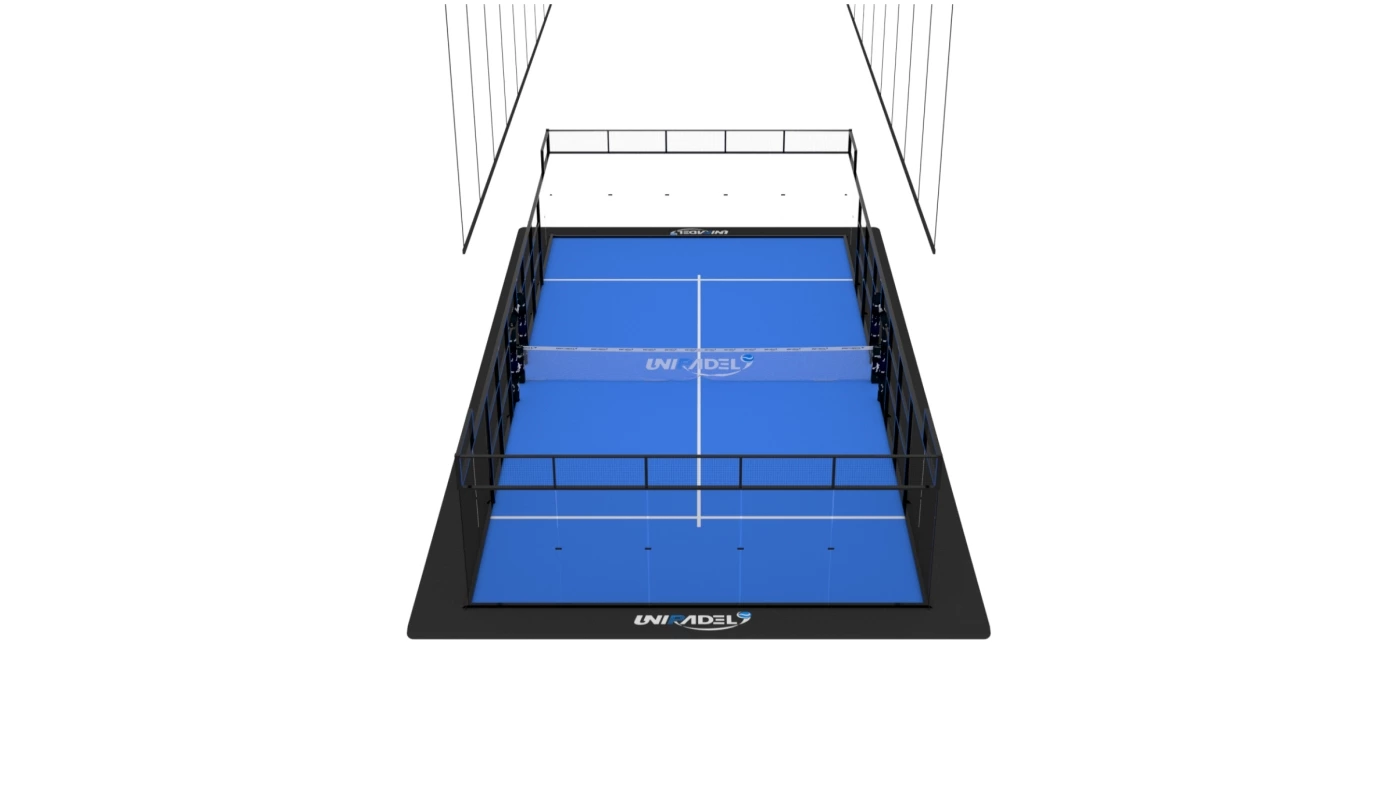

Indoor Padel Court With Linear Light
Indoor Padel Court With Linear Light
Indoor Padel Court With Linear Light
Indoor Padel Court With Linear Light
Indoor Padel Court With Linear Light
8-10 Year Warranty
The Safest Padel Courts
Excellent Materials
Introduction

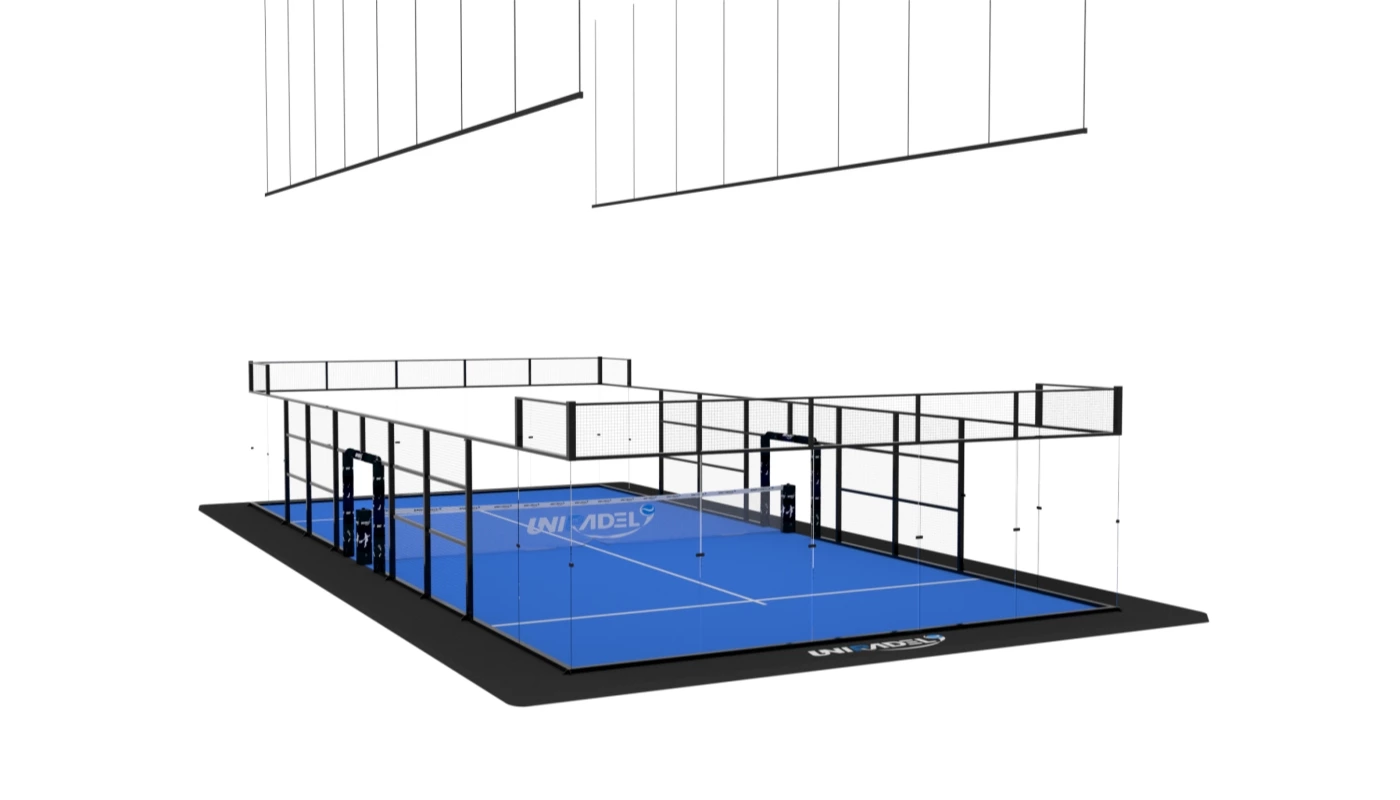

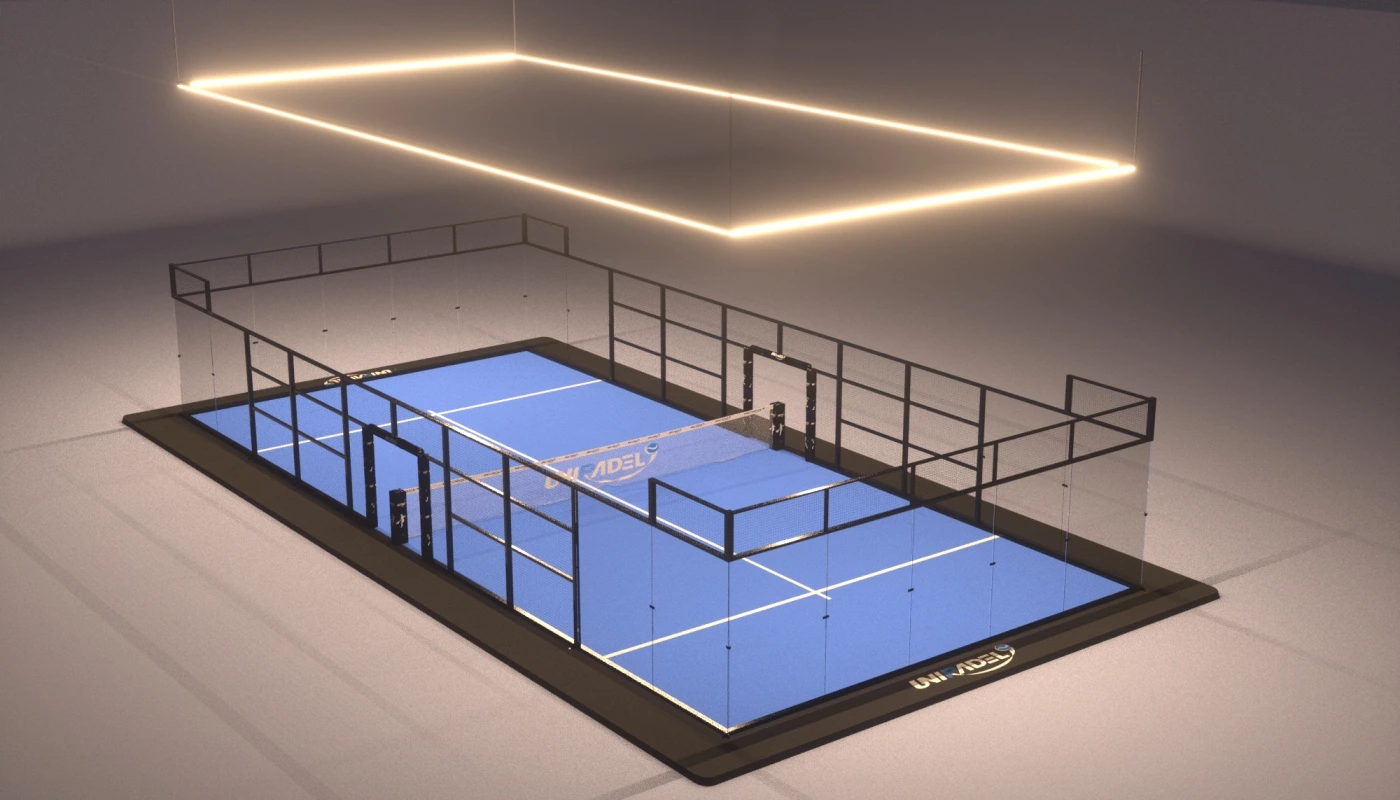

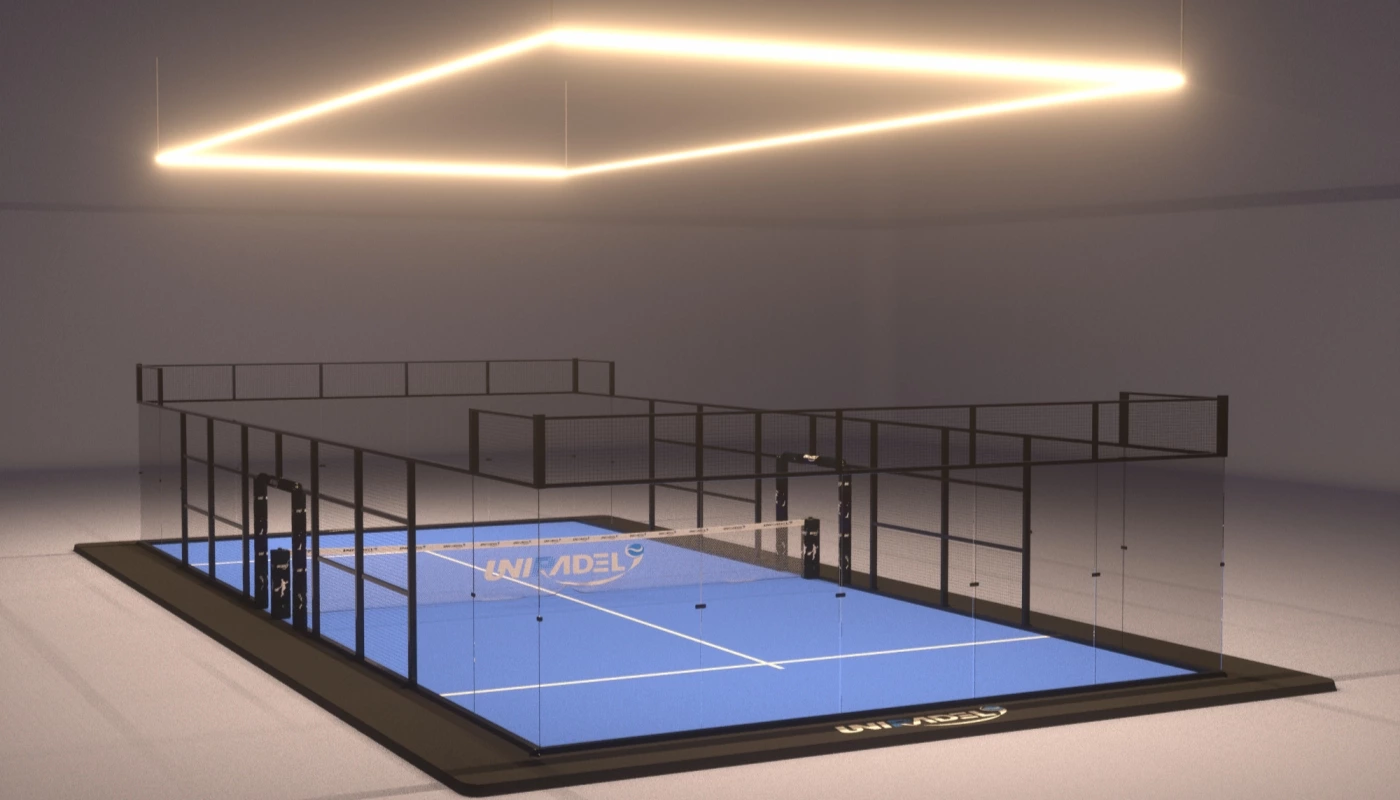

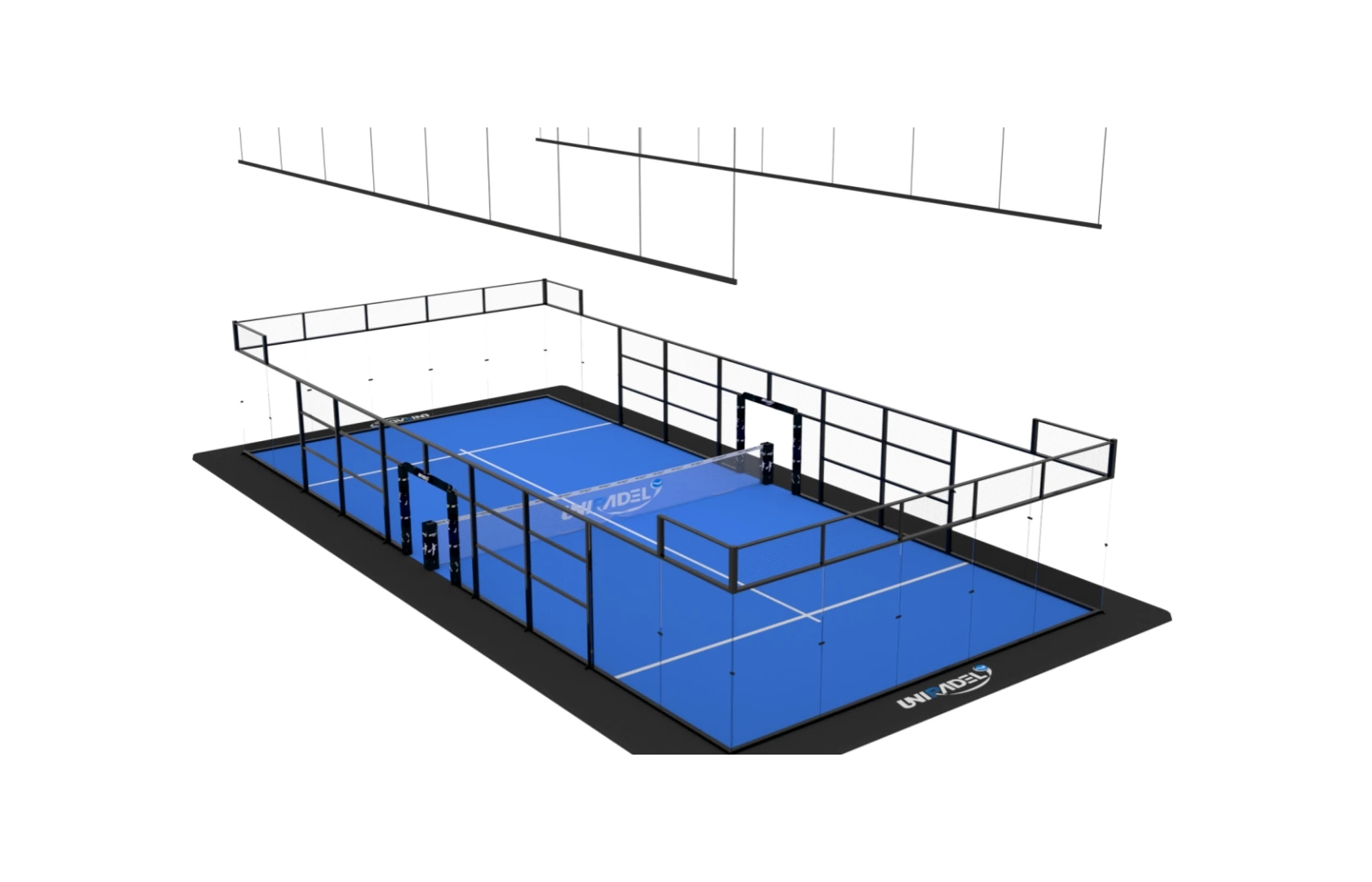

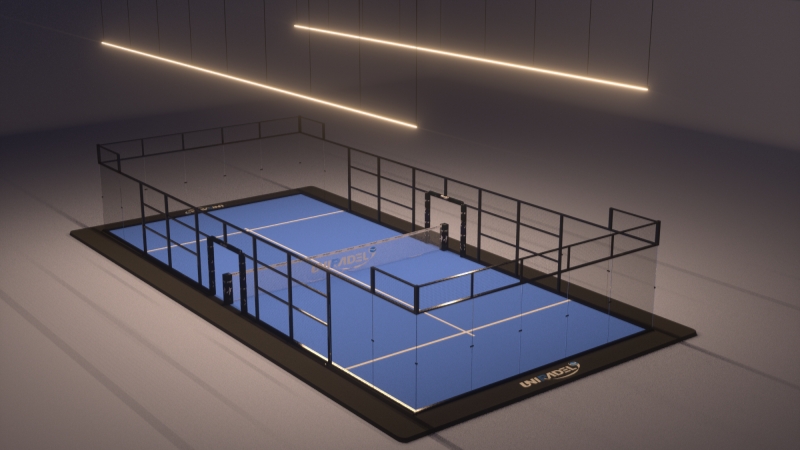

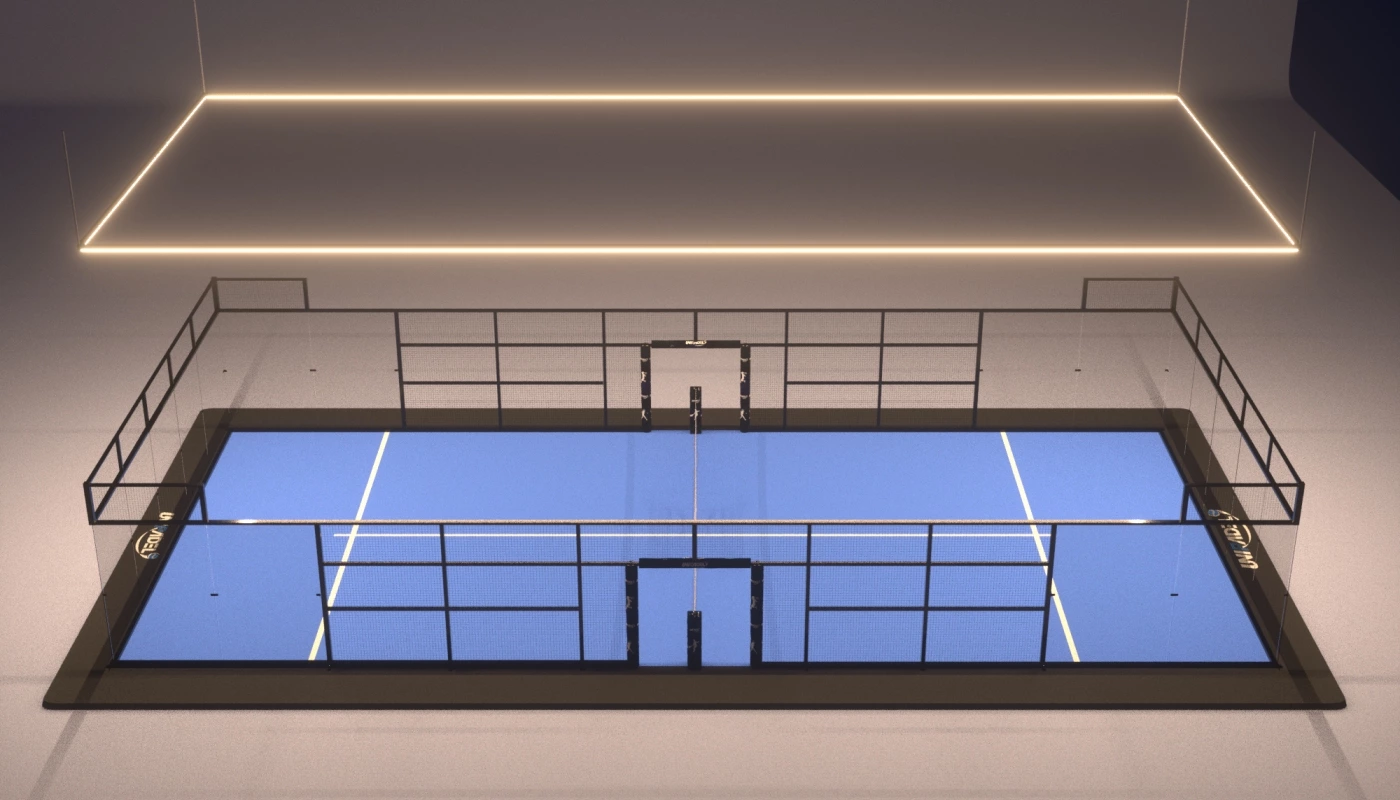

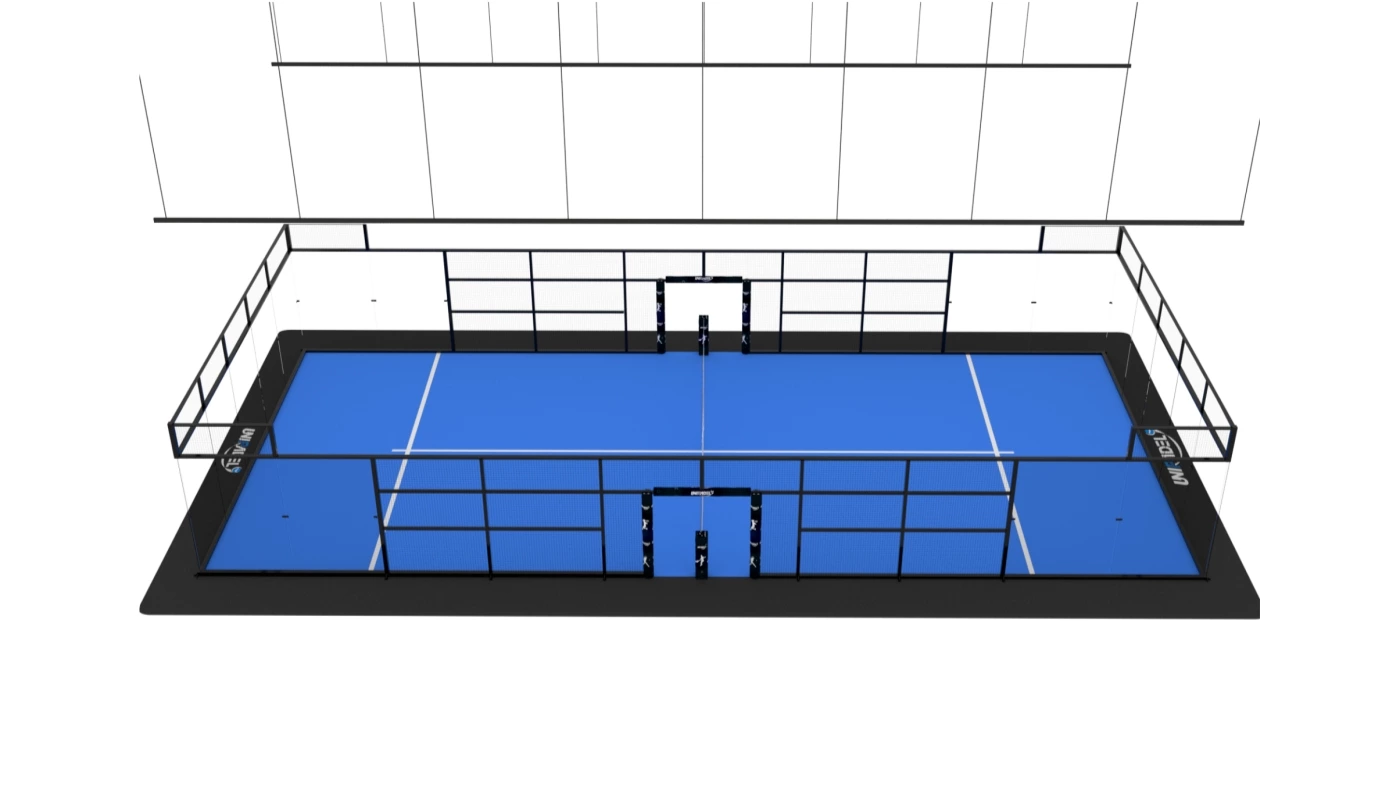

UNIPADEL indoor padel court linear lighting systems are designed to enhance visibility during matches and training sessions. Utilizing high-efficiency LED light sources and a low-glare scheme, they ensure uniform, stable, and comfortable lighting. The system offers two configurations: a four-sided surround linear lighting scheme for complete court coverage and elimination of dark areas; and a side-mounted linear lighting scheme that balances core lighting performance with energy efficiency and cost-effectiveness. Through scientifically designed installation height and beam angles, it creates a safe, fair, and high-standard professional lighting environment for indoor padel courts.
Material Characteristics and Court Design

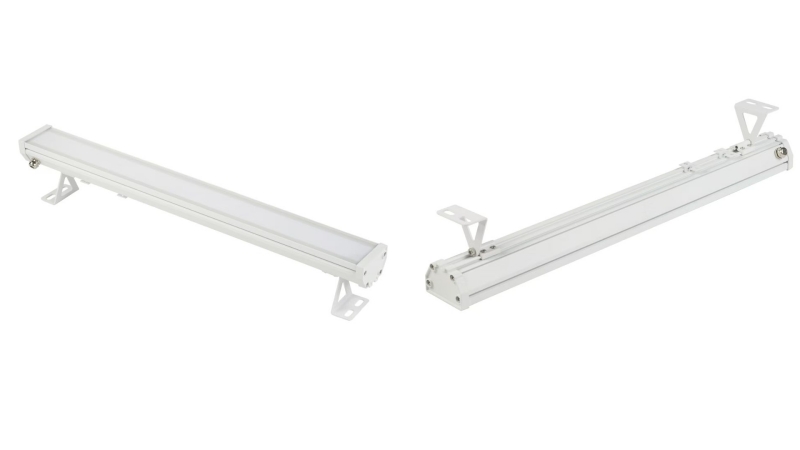

Lighting Fixture Technical Parameters
- Luminous Flux: ≥8400Lm
- Protection Rating: ≥IP54
- Fixture Power: 60W
- Input Voltage: AC220V
- Color Temperature: 4000K, 5000K, 6000K (optional)
- Fixture Structure: Aluminum body + tempered glass
- Dimming Function: 0-10V dimming
- Fixture Dimensions: 1182*64mm
Installation method

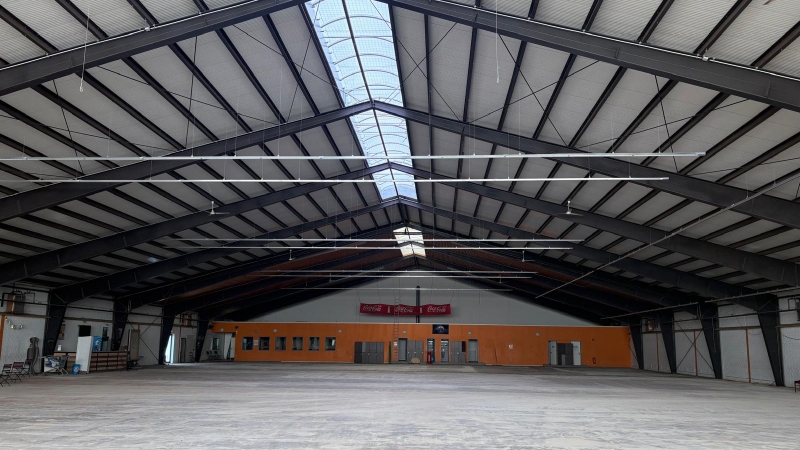

The linear lights are installed using a modular hanging method: First, the mounting clips provided by us are fixed to the customer's 50×50 metal square tube in groups of 1.2 meters. Then, the 1.2-meter linear light strips are inserted into the clips one by one and fixed into a whole. Finally, the assembled square tube is suspended from the ceiling using a load-bearing matching hoisting chain, and the chain length is adjusted to keep the light body horizontal. Before installation, the square tubes need to be cut according to the site dimensions and allowance is reserved for splicing to ensure structural stability and uniform lighting effect.
Advantages of Indoor Linear Lighting
1. Uniform, Dark-Effect-Free Illumination: 360° surround or linear layout provides complete coverage of the court space, avoiding shadows and dark areas, and improving visual clarity during shots and movements.
2. Low Glare for Greater Comfort: Diffuse linear light emission is softer than traditional spotlights, reducing glare from direct sunlight, making it suitable for long training sessions and matches.
3. Stable and Safe Electrical Performance: Constant current drive design with undervoltage, overvoltage, overtemperature, short circuit, and 6KV surge protection ensures long-term stable operation.
4. Efficient Heat Dissipation and Longer Lifespan: High-purity aluminum heat sink + superconducting PCB design ensures rapid heat conduction, reduces light decay, and extends the lifespan of the lamp.
Hot-dip Galvanized Frame & Structure
Imported polyester powder electrostatic spraying, point-to-point welding, more stable and quieter. The mesh wire is welded directly on the machine to reduce the contact area of the welding point. Standard: GB/T6728-2017, Grade: Standard zinc content 650g/m2, hot-dip galvanizing, thick galvanized layer, self-contained zinc layer, and has double anti-corrosion and anti-rust properties after spraying.
The indoor padel court galvanized steel mesh and galvanized steel column are both Q235B model, mesh 50x50mm, mesh 1x2m, frame column 50x30x2mm, column and corner column 80x80x3mm, height 3m, crossbar 80x80x3mm, lamp arm 50x50x2.5mm, height 3m, center column 80x80x3mm, height 980mm, surface powder spraying treatment.
Padel Glass
12mm tempered glass (1990mm*3000mm/piece, 180kg) complies with EN12150-2:2004 standard, compressive strength>125MPa, impact strength is 4 times higher than ordinary glass, light transmittance is 87%, resistant to 110°C temperature difference, surface drilling treatment, suitable for standard competition and entertainment type padel courts.
Post Colors
UNIPADEL provides customized padel court posts in a variety of colors to meet personalized needs for the appearance of the venue.
The black frame is stable and elegant, suitable for high-end venue design; the blue frame is full of vitality and brings a sense of freshness; the orange frame is bright and enthusiastic, suitable for fashionable style venues; the white frame is simple and elegant, highlighting the high-end atmosphere; the green frame is natural and environmentally friendly, blending in with the environment; the purple frame is mysterious and unique, increasing the visual appeal of the venue.
In addition to the above, customers can also choose other custom colors according to their brand or personal preferences. The choice of frame color is usually combined with the lawn color to ensure the best overall visual effect.
Turf Artificial Grass
UNIPADEL curly textured padel turf is the most popular choice on the current market and is widely used in the World Padel Tour (WPT) and many professional competitions. The characteristic of this artificial turf is that the fibers on its surface are specially designed to form a unique texture and pattern in a curled or twisted way, which provides athletes with better grip and traction and enhances the realism of the game.
Curly padel turf not only improves sports performance, but also creates a more comfortable game experience for players. In addition, the turf can be made of a variety of synthetic fiber materials, and the performance and durability of each material varies from manufacturer to manufacturer, which makes different types of turf show obvious differences when used. We are committed to using high-quality raw materials to ensure that we provide top-quality products for high-level competitions and professional padel players to meet their strict requirements for quality and performance.
Whether on the training ground or in competition, UNIPADEL curly turf will become a reliable partner for athletes' performance, making every game full of passion and challenge.
UNIPADEL Curled Turf
A high-performance artificial turf system with a curly fiber structure
