Introduction

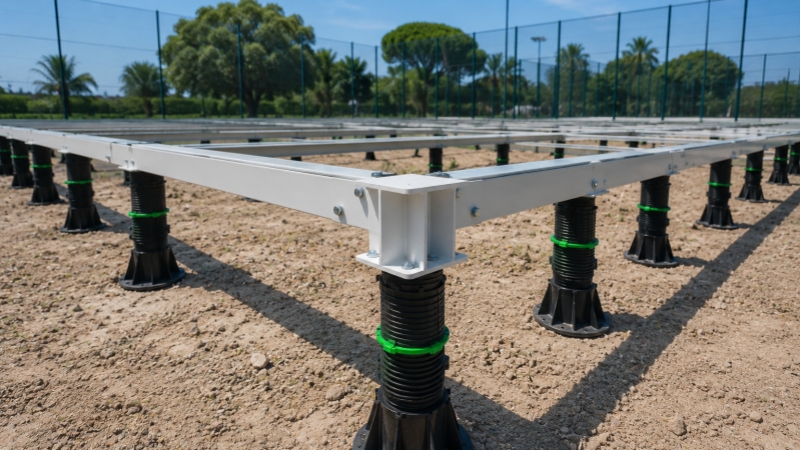

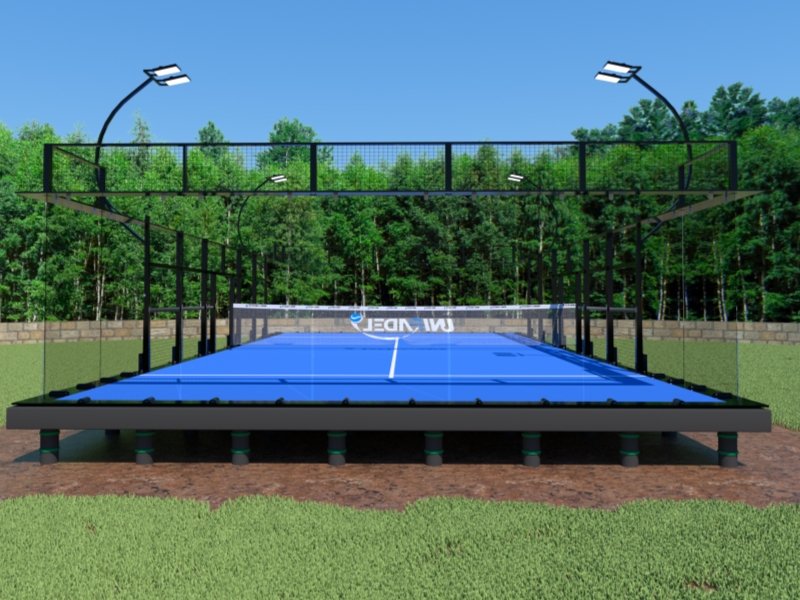

The Portable Foundation System for Padel courts, introduced by UNIPADEL, represents a revolutionary solution addressing the critical challenges associated with modern court installation. It completely eliminates the reliance on traditional, permanent concrete foundations, enabling rapid construction even in environments where building permits are unavailable or where groundworks are unfeasible. As illustrated, the system utilizes a precisely engineered support structure to securely suspend the court above grass, sand, or any uneven terrain—thereby truly realizing the possibility of "starting the game, anytime, anywhere."
Precision Materials
Main Framework: The side beams utilize large-section 100×200×3.0mm rectangular steel tubes, reinforced by 14mm-thick connecting plates and 8mm hot-dip galvanized steel plates that clamp the beams both internally and externally; the entire assembly undergoes a dual anti-corrosion treatment consisting of hot-dip galvanizing followed by powder coating.
Load-Bearing Base: The base frame is welded from 40×40mm steel tubing and paired with 18mm-thick, high-density, fire- and water-resistant specialty high-strength panels, achieving a maximum load-bearing capacity of up to 2,765 kg per leg.

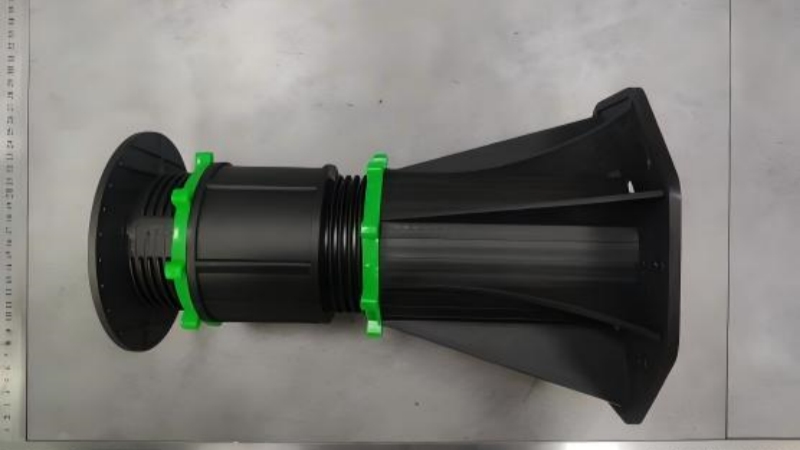

Precision Adjustment: Equipped with 180mm height-adjustable support components, utilizing Grade 8.8 high-strength bolts and 304 stainless steel anti-theft hardware.
Advantages: No Civil Works, Easy Relocation, Enhanced Protection
Zero Civil Engineering Costs: Eliminates the need for expensive ground excavation and concrete pouring, significantly streamlining project approval processes and reducing construction time.
Exceptional Flexibility: The system is fully demountable and reusable, allowing for complete relocation to a new site—thereby safeguarding your asset investment.
Professional Athletic Feel: Leverages the slight elastic deflection of the metal framework (the "Soft Touch" effect) to provide players with shock absorption comparable to that of premium tennis courts; this effectively protects ankles and knees while ensuring perfect ball rebound characteristics.
Sustainability: Constructed using recyclable components and eco-friendly materials, the system causes zero damage to the existing ground surface, fully aligning with the sustainable principles of green building.
Authoritative Certification
The UNIPADEL mobile foundation system not only leads in performance but also achieves top-tier international standards in terms of compliance:
EU RoHS Environmental Testing: Passed ten rigorous tests (2011/65/EU and EU 2015/863), ensuring the absence of residual hazardous substances—such as lead, mercury, and cadmium—and guaranteeing an eco-friendly, non-toxic product.
EU Construction Materials Certification (CE): Awarded the EU 305/2011 certification for construction products, complying with the EN 14566:2008+A1:2009 standard; this provides authoritative assurance for the global market access of your projects.
