Product Technology

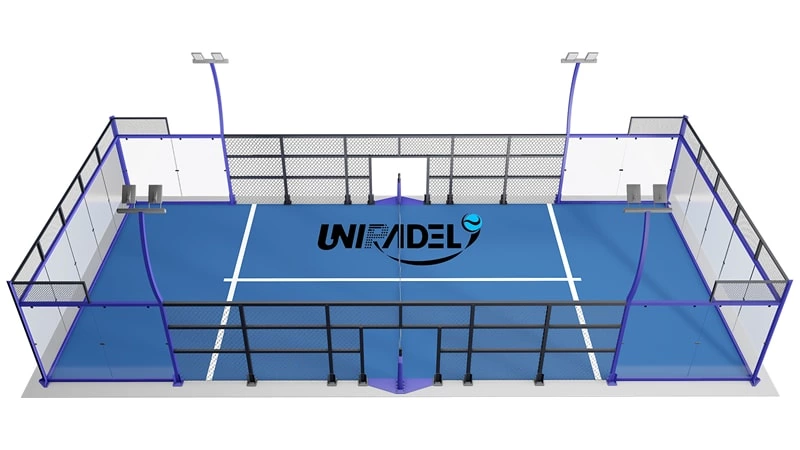

The dimensions of a standard Panoramic Padel Court With C-shaped are Length: 20 m (65 ft 7 in), Width: 10 m (32 ft 10 in), Layout is rectangular, Side and back walls: usually 3 m (10 ft), Front wall (net side): Height 2 m (6 ft 7 in). ...

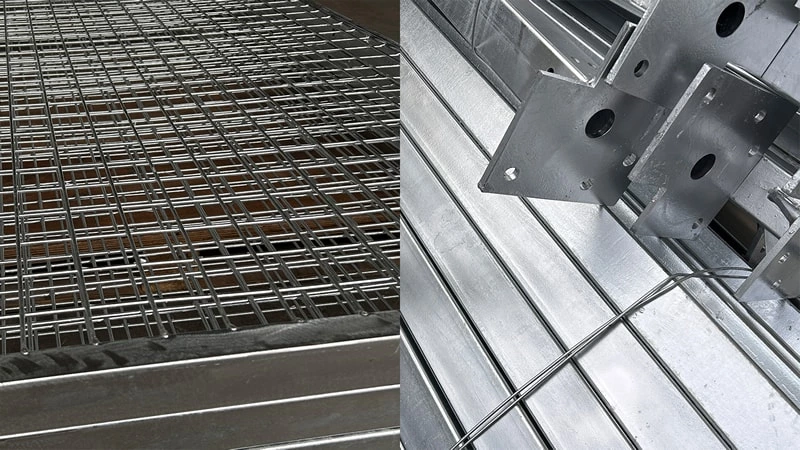

Imported polyester powder electrostatic spraying, point-to-point welding, more stable and quieter. The mesh wire is welded directly on the machine to reduce the contact area of ​​the welding point. Standard: GB/T6728-2017, Grade: Standard zinc content 650g/m2, hot-dip galvanizing, thick galvanized layer, self-contained zinc layer, and has double anti-corrosion and anti-rust properties after spraying. The Panoramic Padel Court With C-shaped galvanized steel mesh and galvanized steel column are both Q235B model, mesh 50x50mm, mesh 1x2m, frame column 50x30x2mm, column and corner column 80x80x3mm, height 3m, crossbar 80x80x3mm, lamp arm 50x50x2.5mm, height 3m, center column 80x80x3mm, height 980mm, surface powder spraying treatment. ...

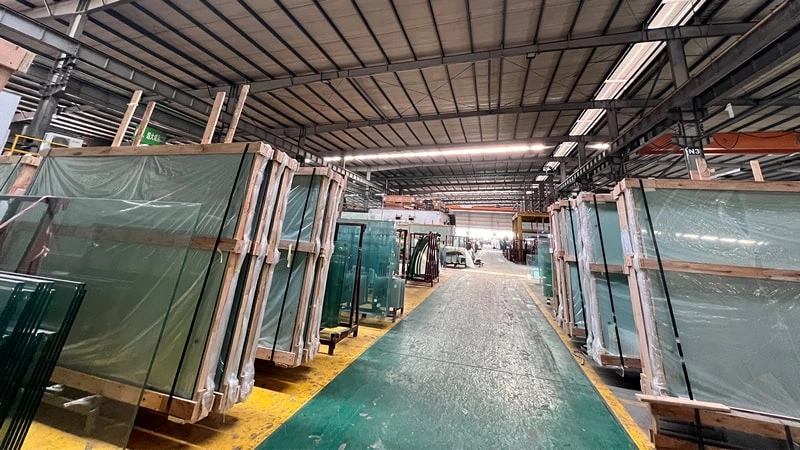

12mm tempered glass (1990mm*3000mm/piece, 180kg) complies with EN12150-2:2004 standard, compressive strength>125MPa, impact strength is 4 times higher than ordinary glass, light transmittance is 87%, resistant to 110°C temperature difference, surface drilling treatment, suitable for standard competition and entertainment type padel courts. ...

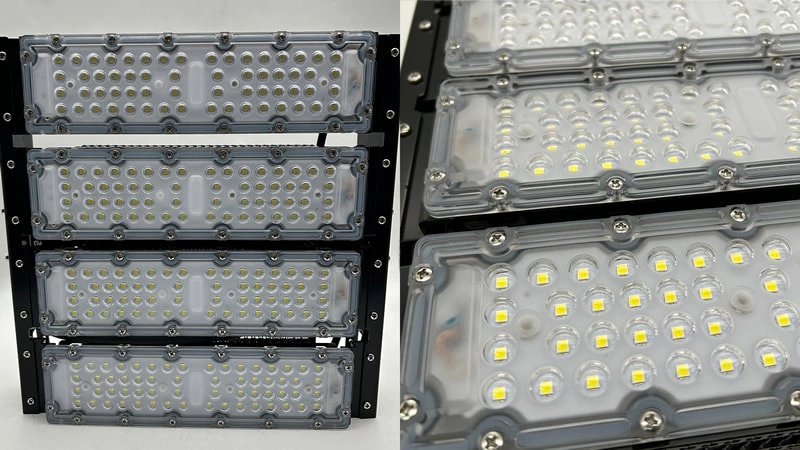

The padel court LED lighting system uses Mean Well power supply and high-end brand lamp beads, 200W power, luminous efficiency ≥120LM/W, luminous flux>24000Lm, color temperature 5700K, color rendering index Ra70, IP65 protection level, working temperature -25℃～+45℃, life ≥50000 hours, voltage AC220V, power factor ≥0.95. ...
